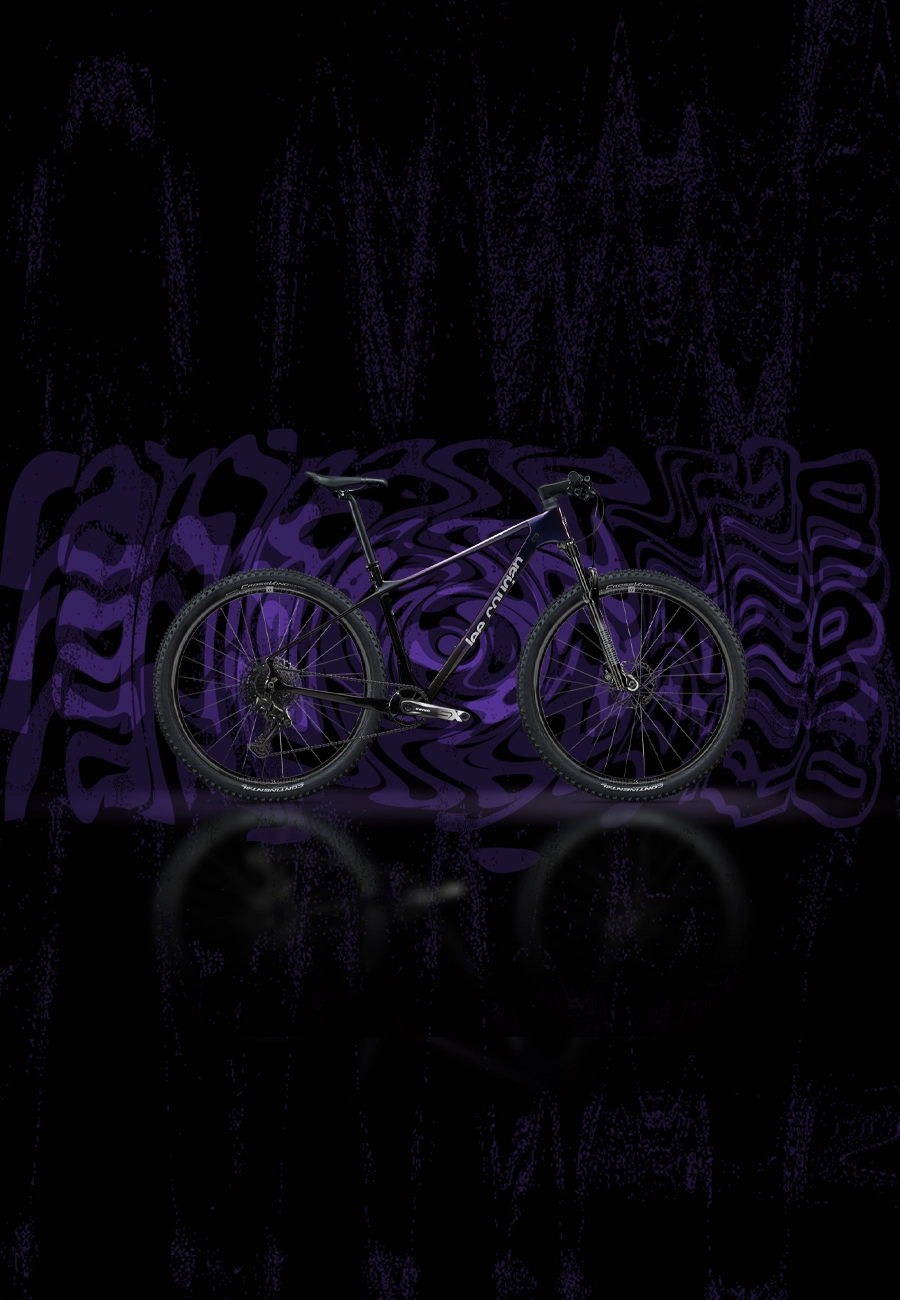

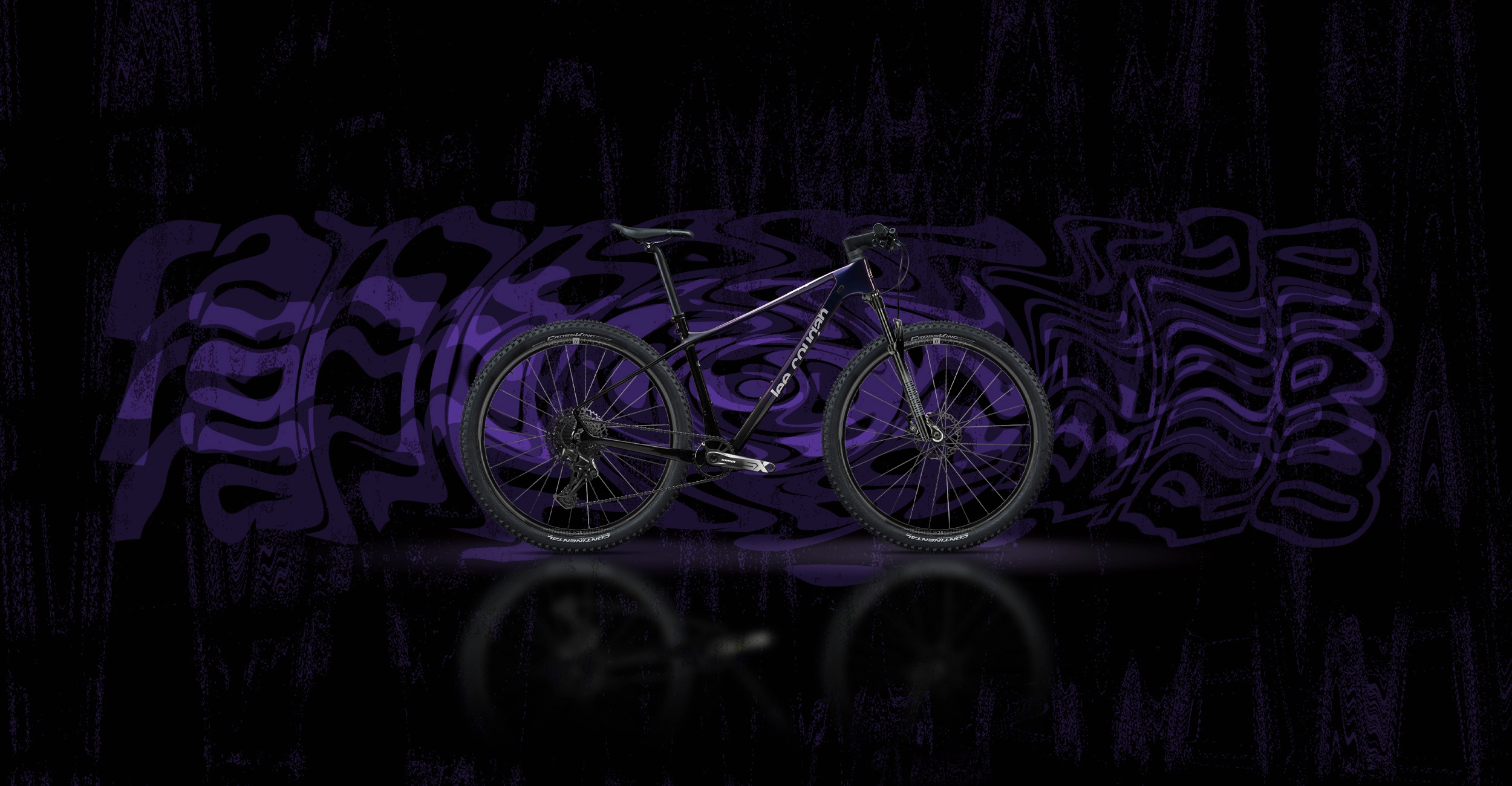

Rampage 428

Pure racing DNA takes fast to faster

The newest version of the race-proven and rider-approved Lee Cougan hardtail stands on the shoulders of a longstanding tradition of front suspension cross-country solutions. Making a fast frame faster in the case of the Rampage, universally lauded by nearly all those with experience riding or racing atop it, made for a difficult task indeed.

Design

Oversized downtube

The oversized downtube takes on a meticulously studied shape that, coupled with the oversize bottom bracket area and shorter, stiff chain stays makes for a structure capable of converting even the highest wattage pedal stroke into efficient forward movement.

Elbow design

Through the Elbow Design solution, we have managed to place the rear wheel inside the rear triangle, thus increasing the vertical flexion of the frame. The Rampage 428 gets its name from the short 428mm chainstay design made to keep the bikes handling snappy, reactive and more efficient.

What's hiding between the fibers?

While the Rampage is visibly different from its previous versions, the elements not visible by the naked eye represent perhaps some of the most significant advancements.

Internal cable routing system

While new shapes give a visual impact it is the absence of visible cables that makes this newest model somewhat disruptive. An oversized steer tube in addition to a specifically studied stem allows for the Rampage to route cables not only internally with regards to the frame but to hide them from sight by passing through the stem.

Lee Cougan’s Air Carbon Technology

Rampage model takes advantage of Lee Cougan’s Air Technology, a carbon molding technique that uses extremely high pressure in the molding phase to eliminate imperfections caused by trapped air in addition to blending the 1k, 3k, and unidirectional carbon fiber in a manner that makes for a more compact overall structure.

The result: stronger, more reliable carbon frames that weigh less than comparable frames that use more traditional construction methods.

3 Bolt Clamp System

The overall geometry sees an increased sloping design in order to allow for even the largest frame sizes to benefit from a shorter chain stay and its resulting compact geometry. The seatpost collar incorporates a great deal of new technology as it uses an advanced three bolt system that renders the seatpost and seat tube a semi complete unit, offering a feel and performance similar to an integrated design.

Predisposition

For 2 bottle cages.

Integrated

cables from under the stem.

Compatible with

Comptrol handlebar.

Amethyst Blue
LC

Geometry

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	XS	S	M	L
Seat tube (ST)	400 mm	420 mm	470 mm	510 mm
Top tube (TT)	570 mm	590 mm	615 mm	625 mm
Head tube (HT)	100 mm	100 mm	100 mm	100 mm
Chain stay (CS)	428 mm	429 mm	430 mm	431 mm
Head tube angle (HA)	70 °	70 °	70 °	70 °
Seat tube angle (SA)	73°	73°	73°	73°
Wheel base (WB)	1076 mm	1096 mm	1109 mm	1132 mm
Reach (R)	408 mm	428 mm	451 mm	459 mm
Stack (S)	619 mm	619 mm	623 mm	623 mm
BB height (BH)	310 mm	310 mm	310 mm	310 mm
Stem lenght	80 mm	90 mm	100 mm	110 mm
