Introducing Flö

Forty years of race-proven engineering meets the relentless power of the Avinox Drive System. Developed entirely in-house, the Flö bridges the gap between raw power and a natural ride feel. Lightweight, intuitive, and immensely capable. Designed to let you find your flow, both up and down the mountain.

GoWithTheFlö

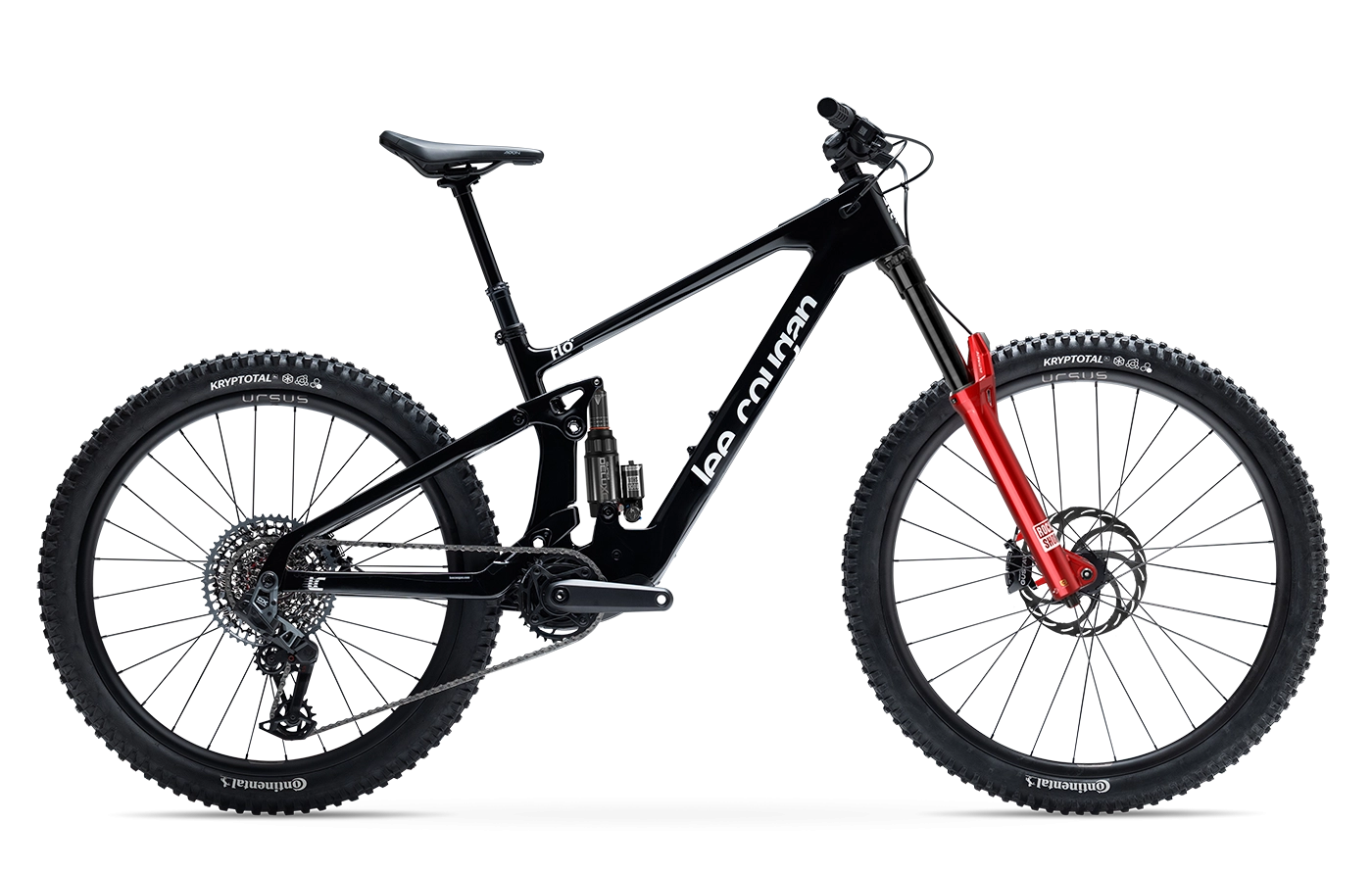

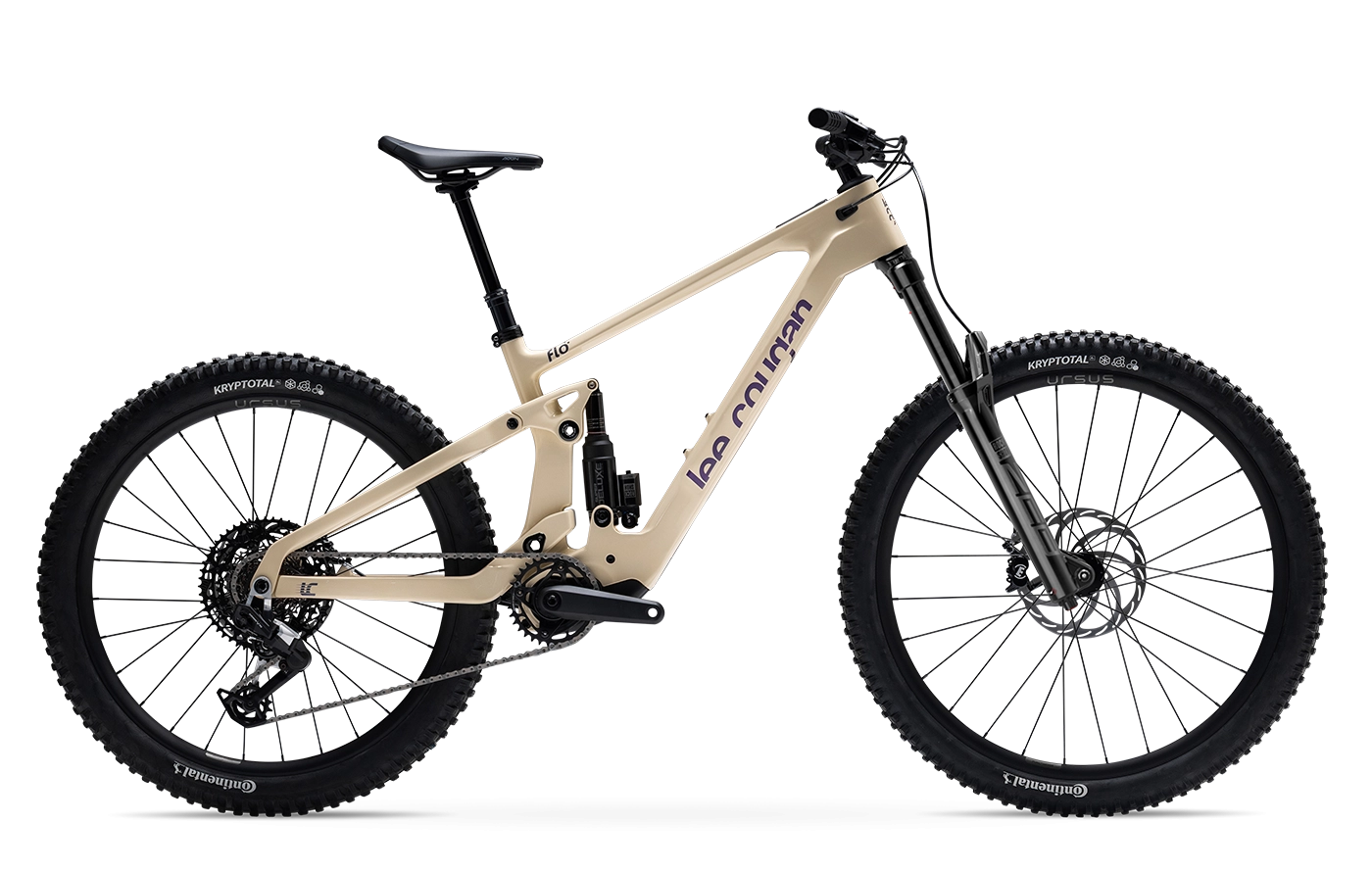

FLÖ

Starting from

Travel

160 mm

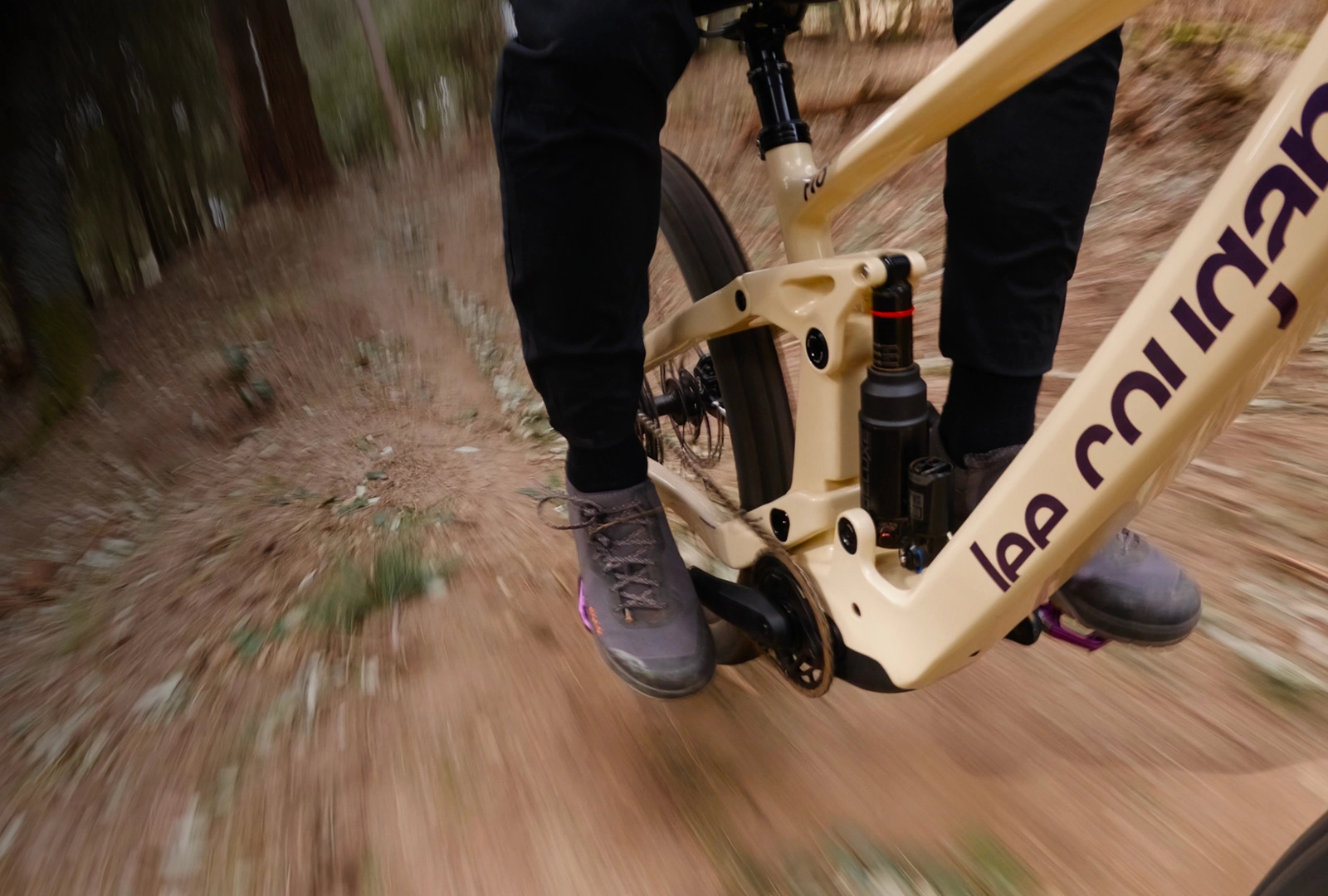

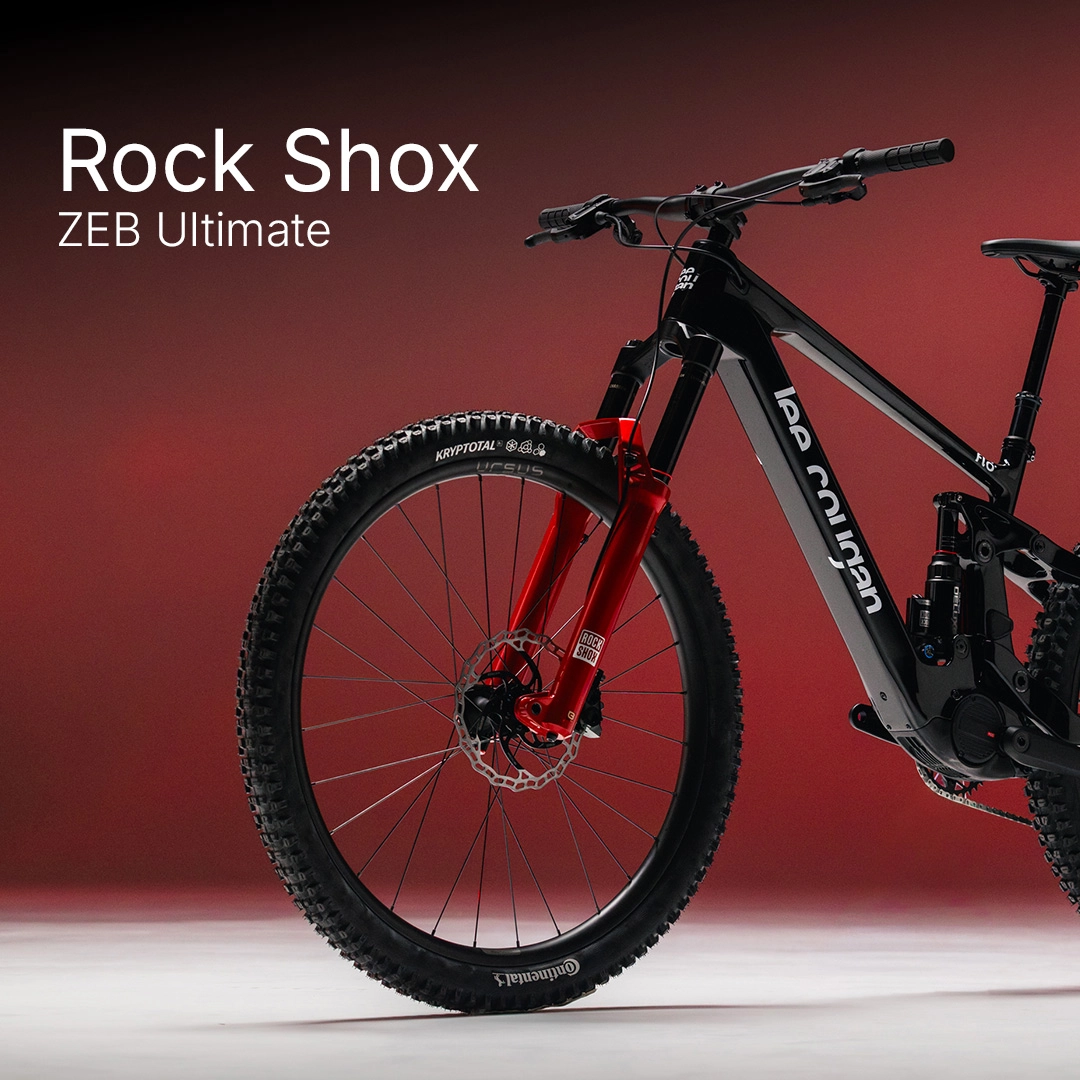

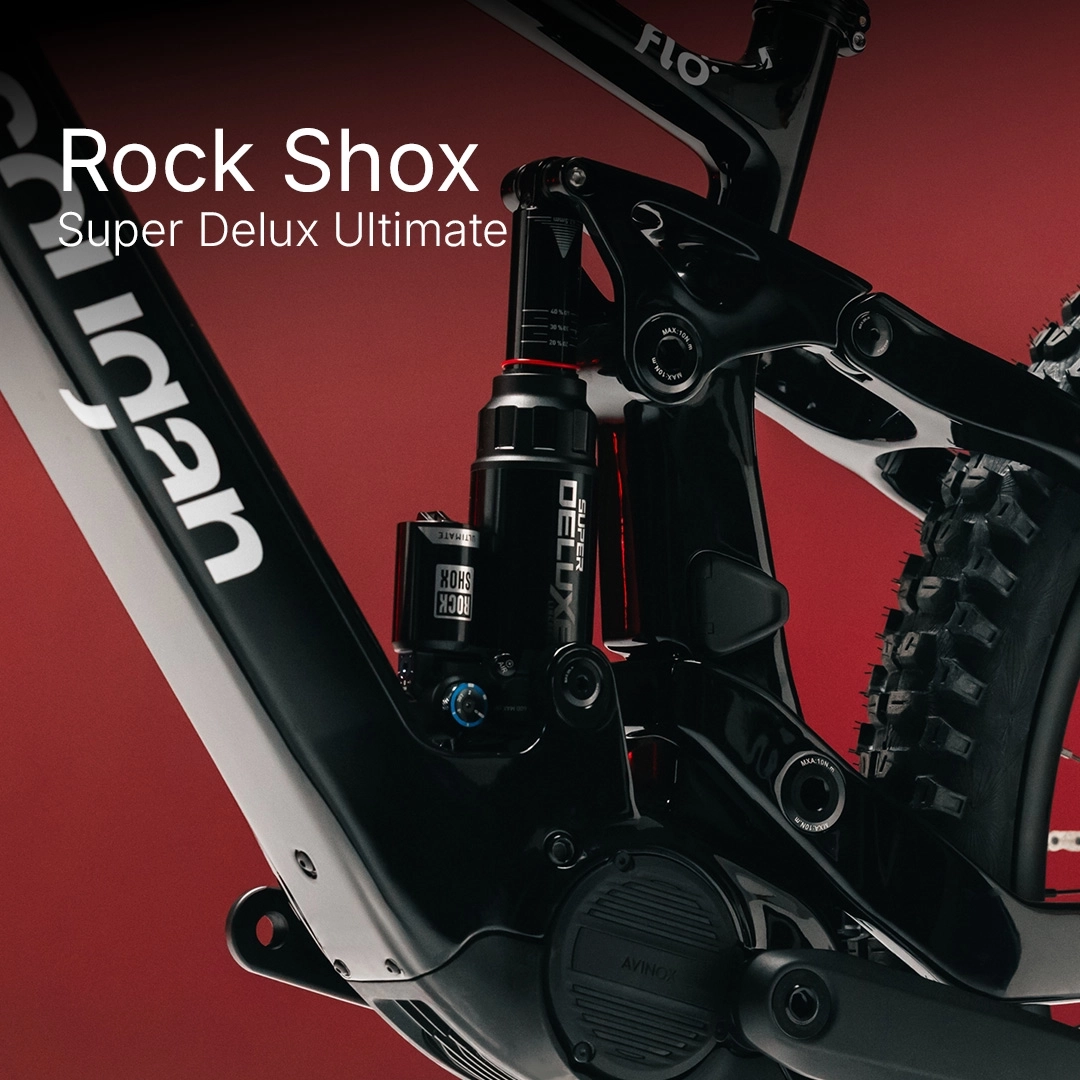

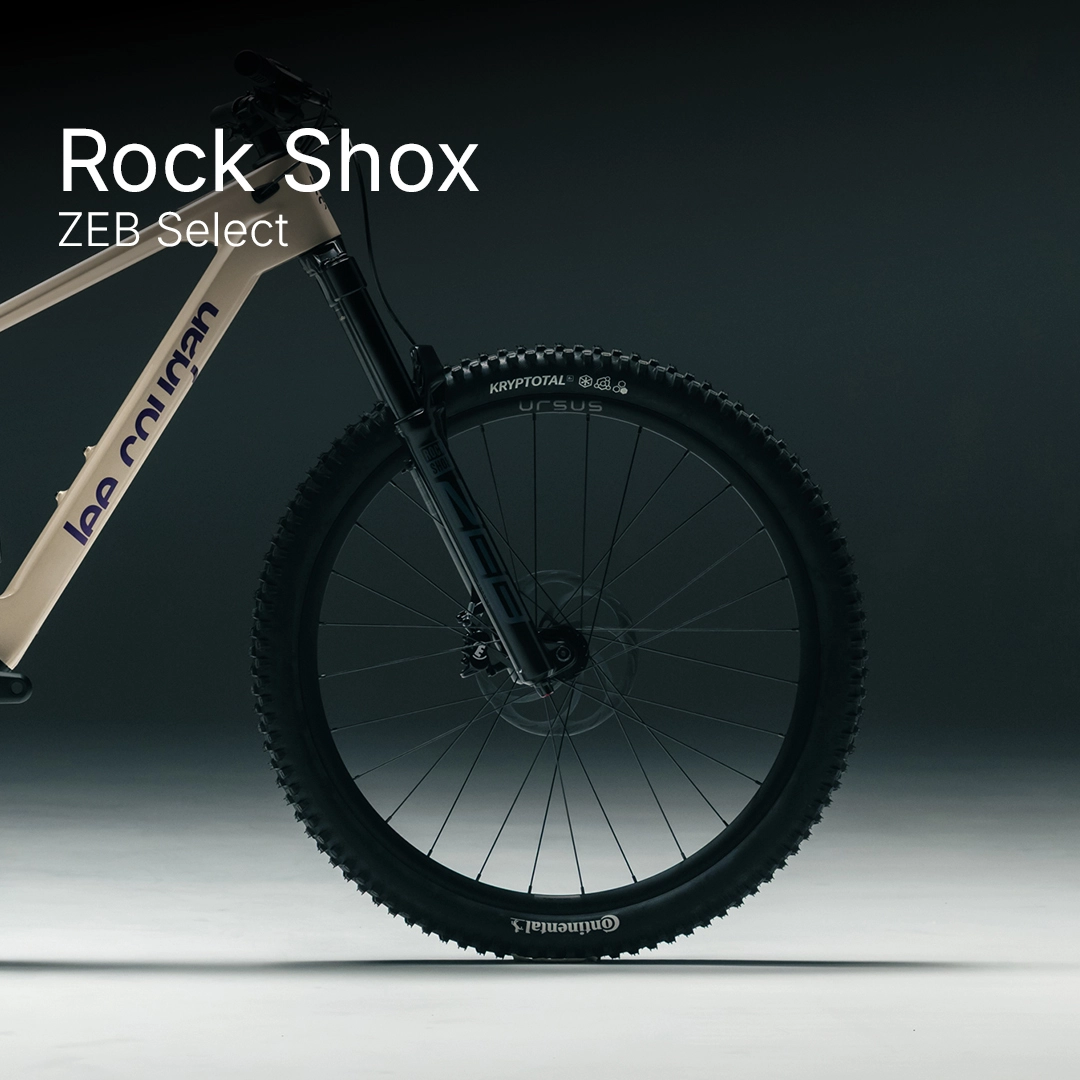

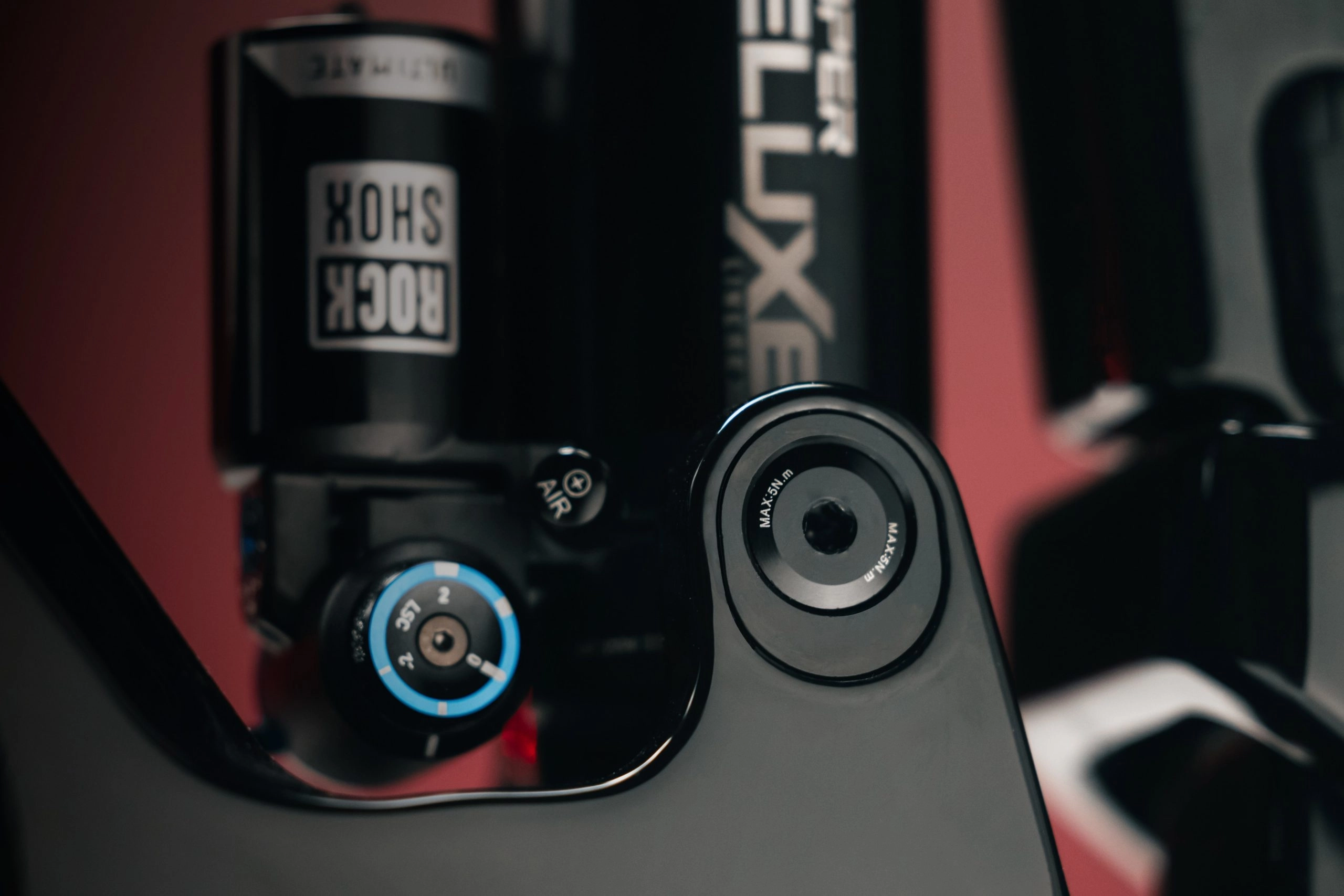

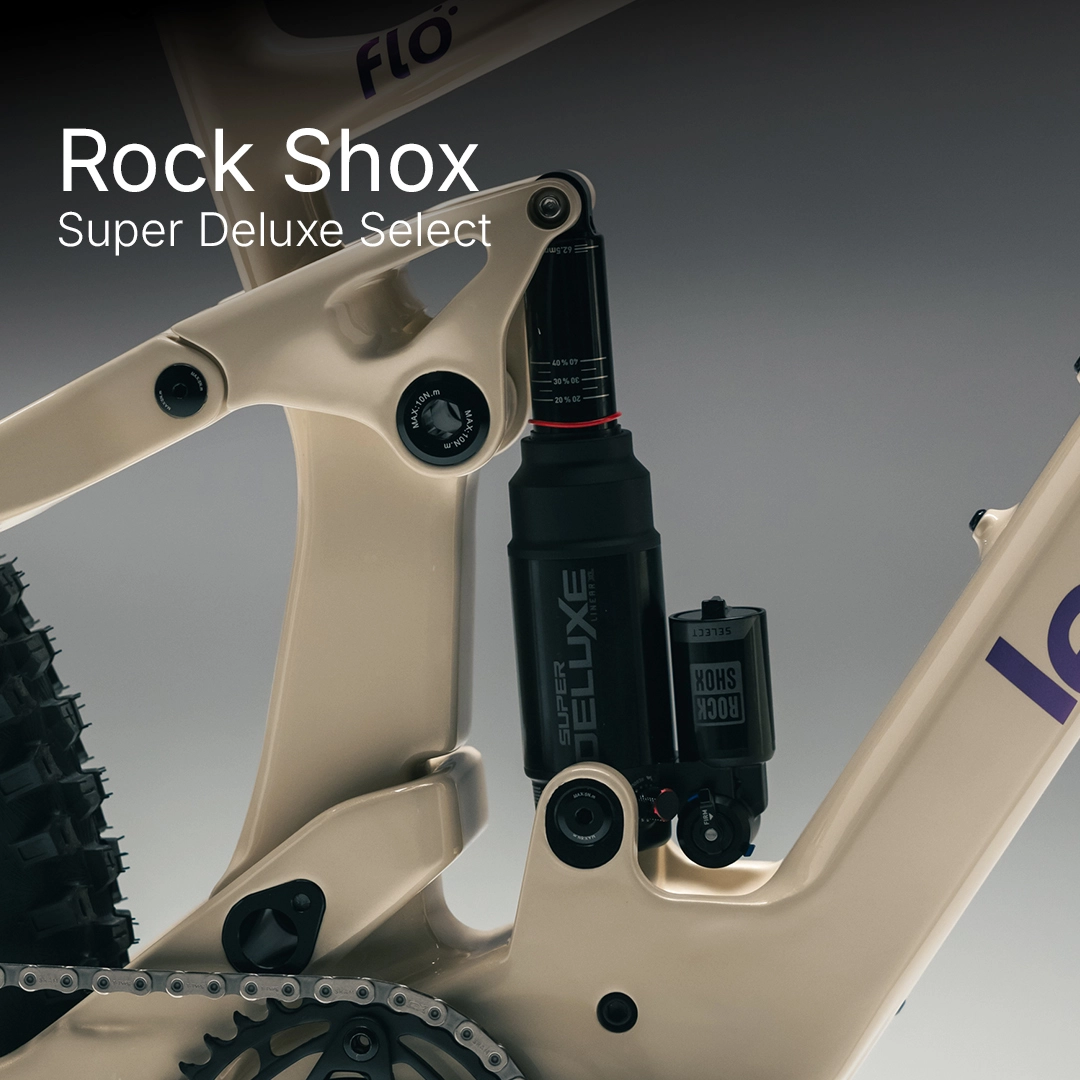

RockShox Suspensions

Avinox Drive Unit

April 9

9 am CET

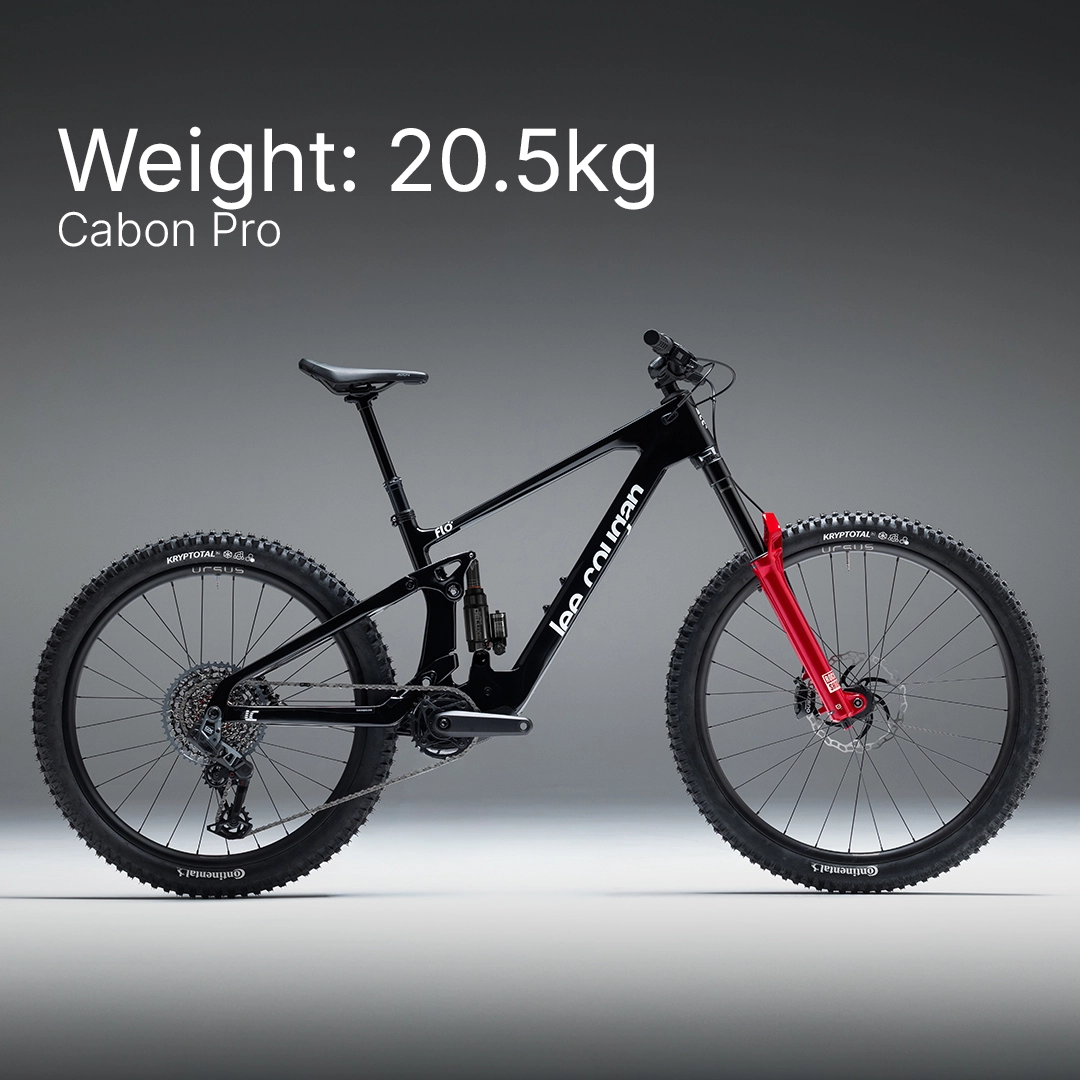

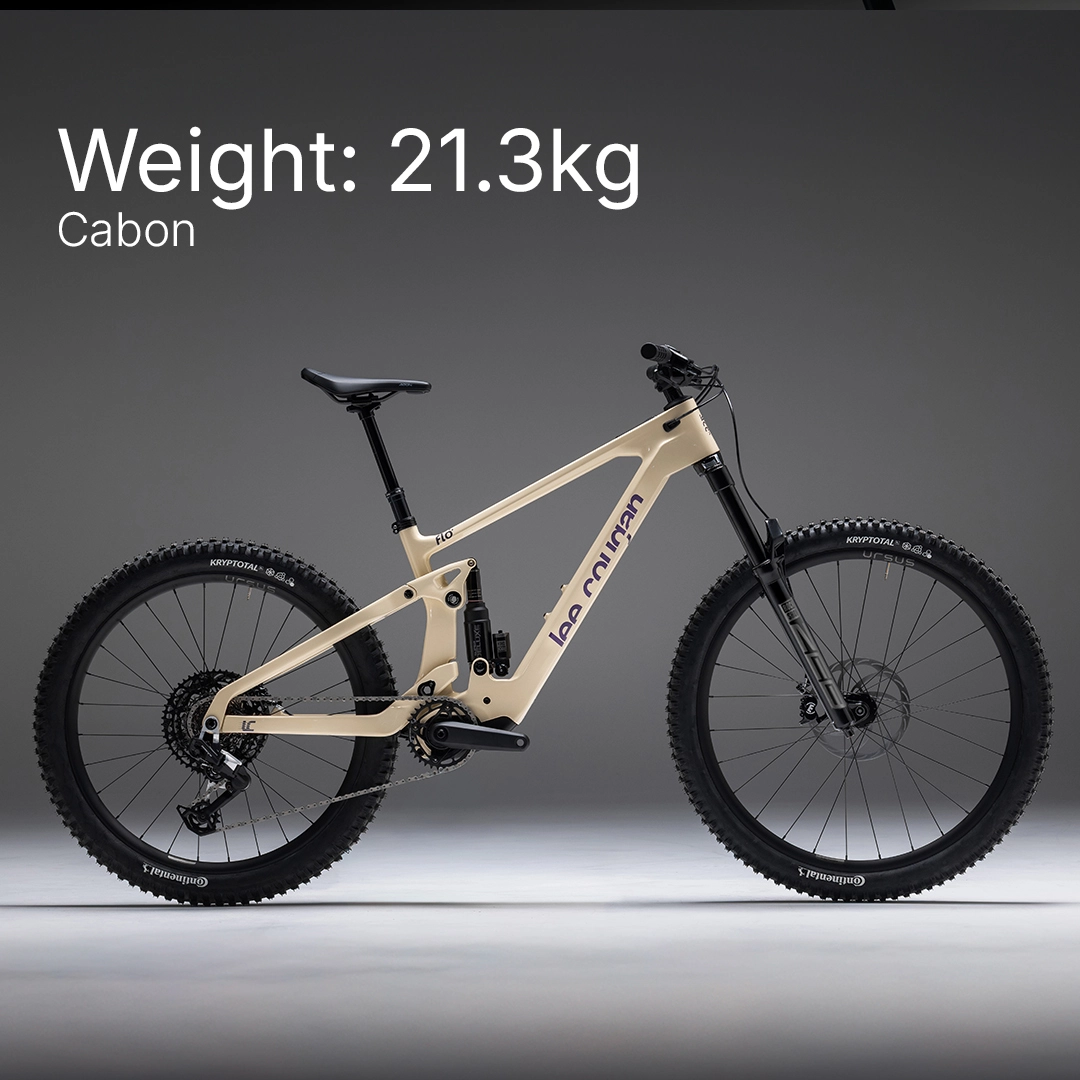

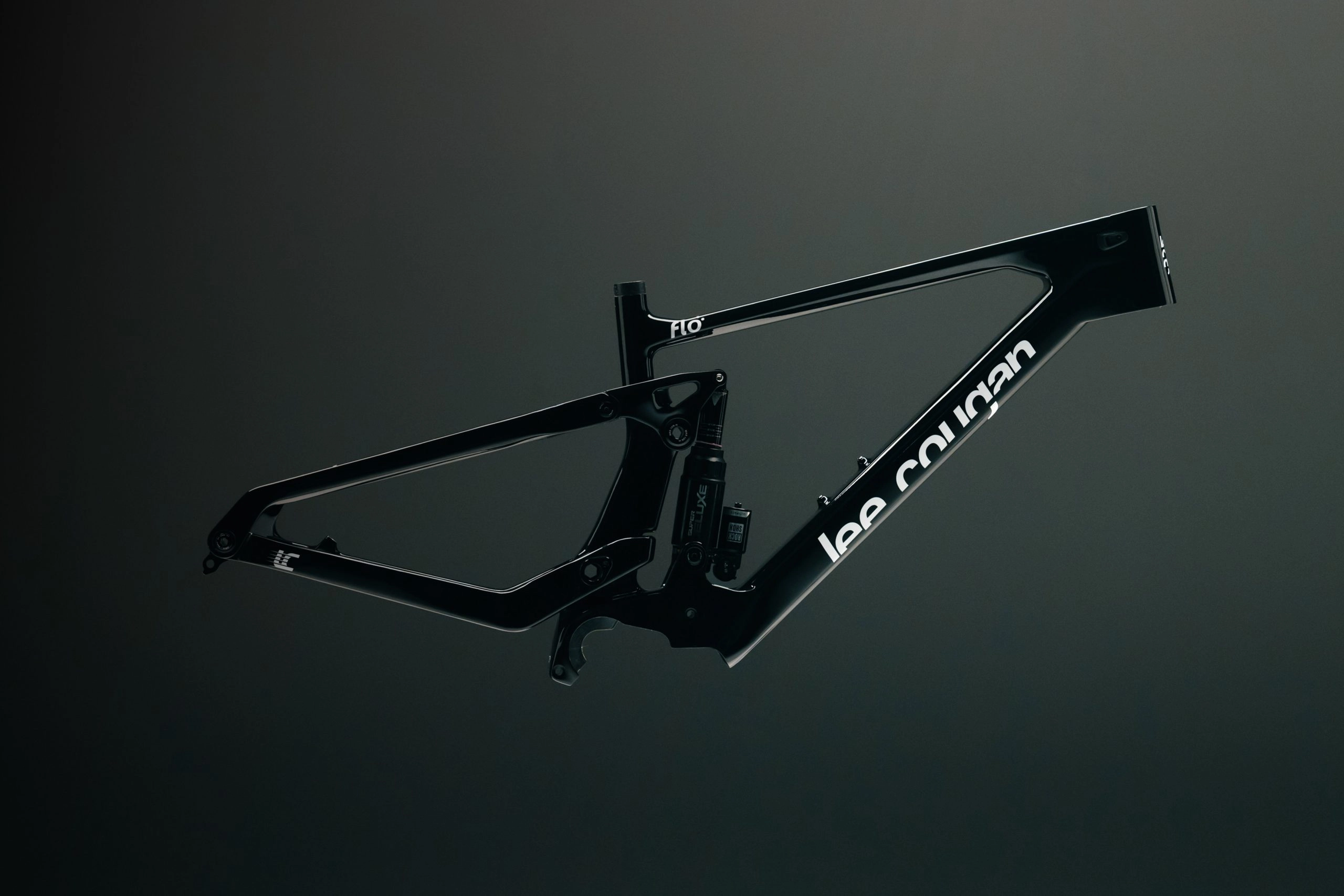

Frame kit weight

2.5 kg

Lightest frame weight in its category

Avinox x Flö: The Perfect Match

To create the ultimate enduro e-bike, we integrated the best-in-class Avinox Drive System. It’s the perfect synergy of power and agility, mirroring the Flö’s race-bred DNA to bring “flow” not just to the descents, but to the technical climbs as well.

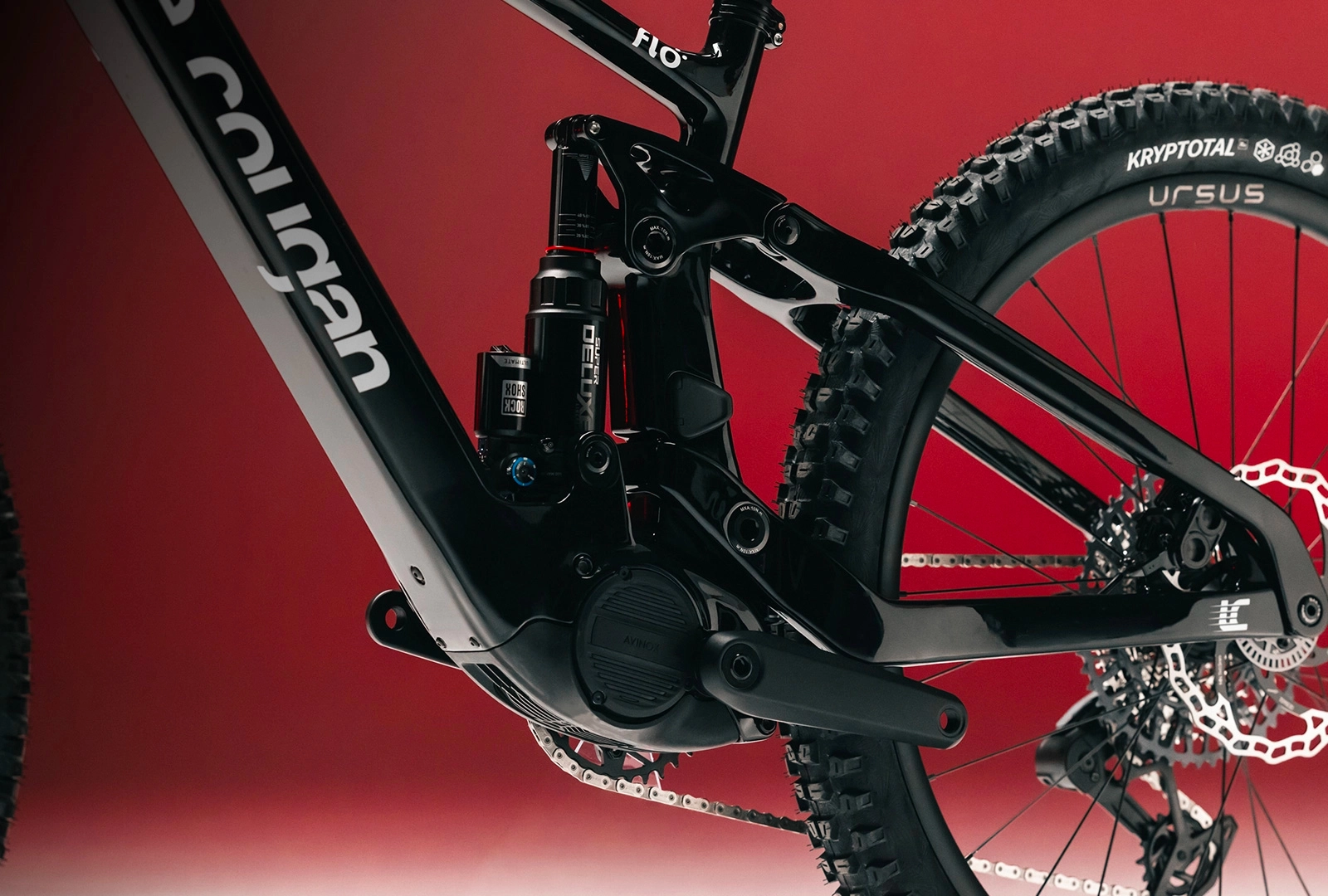

The Avinox Drive Unit

Engineered for silence and high efficiency, this 2.6 kg powerhouse delivers massive performance without the noise. More details coming soon.

800 Wh Battery

Avinox OLED Display

Stay Connected

Every touchpoint is designed to keep you connected to your ride and ready for the next trail.

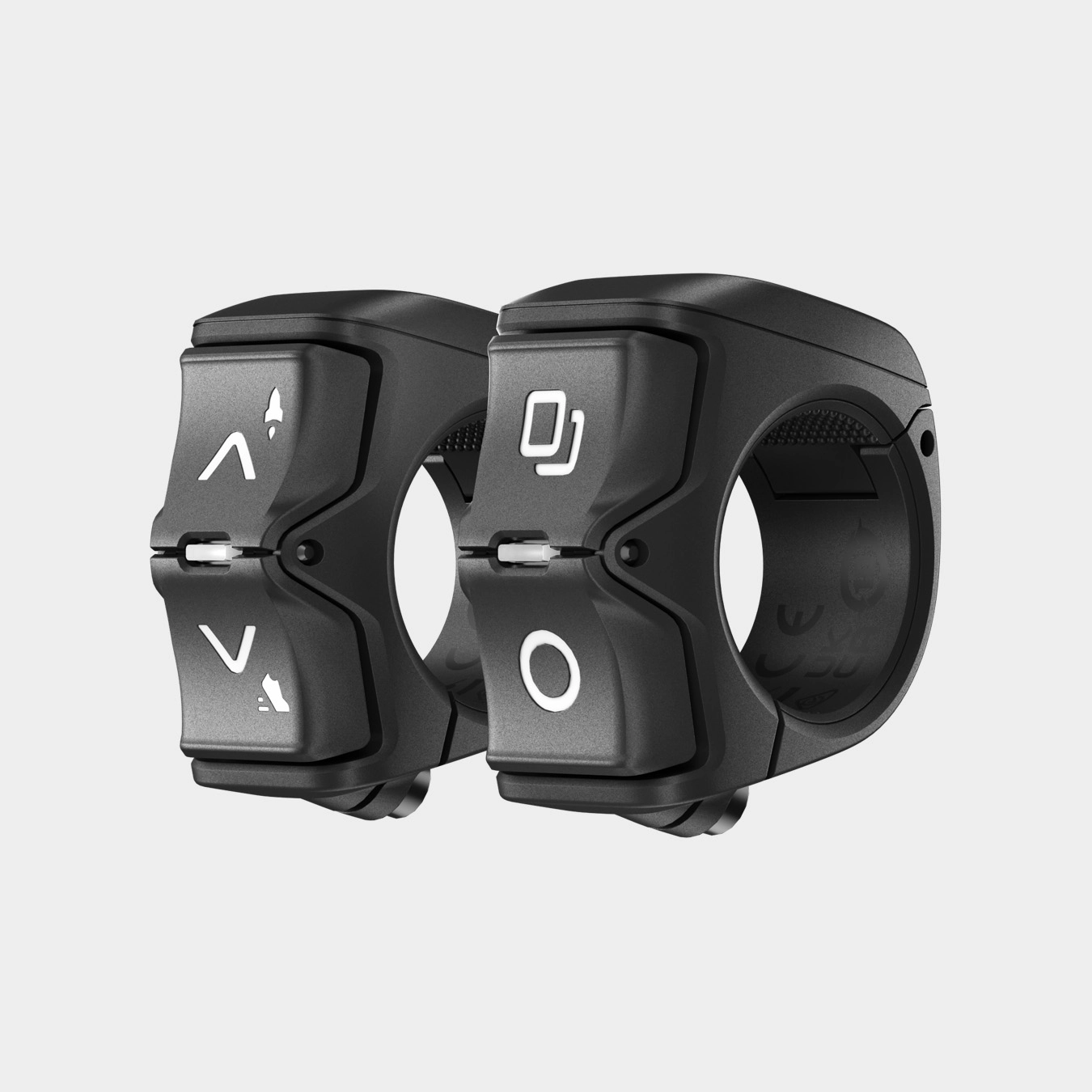

Wireless Triggers

Dual controllers with four buttons put every function at your fingertips. The right trigger is fully customizable, and with a one-year battery life, it’s always ready to ride.

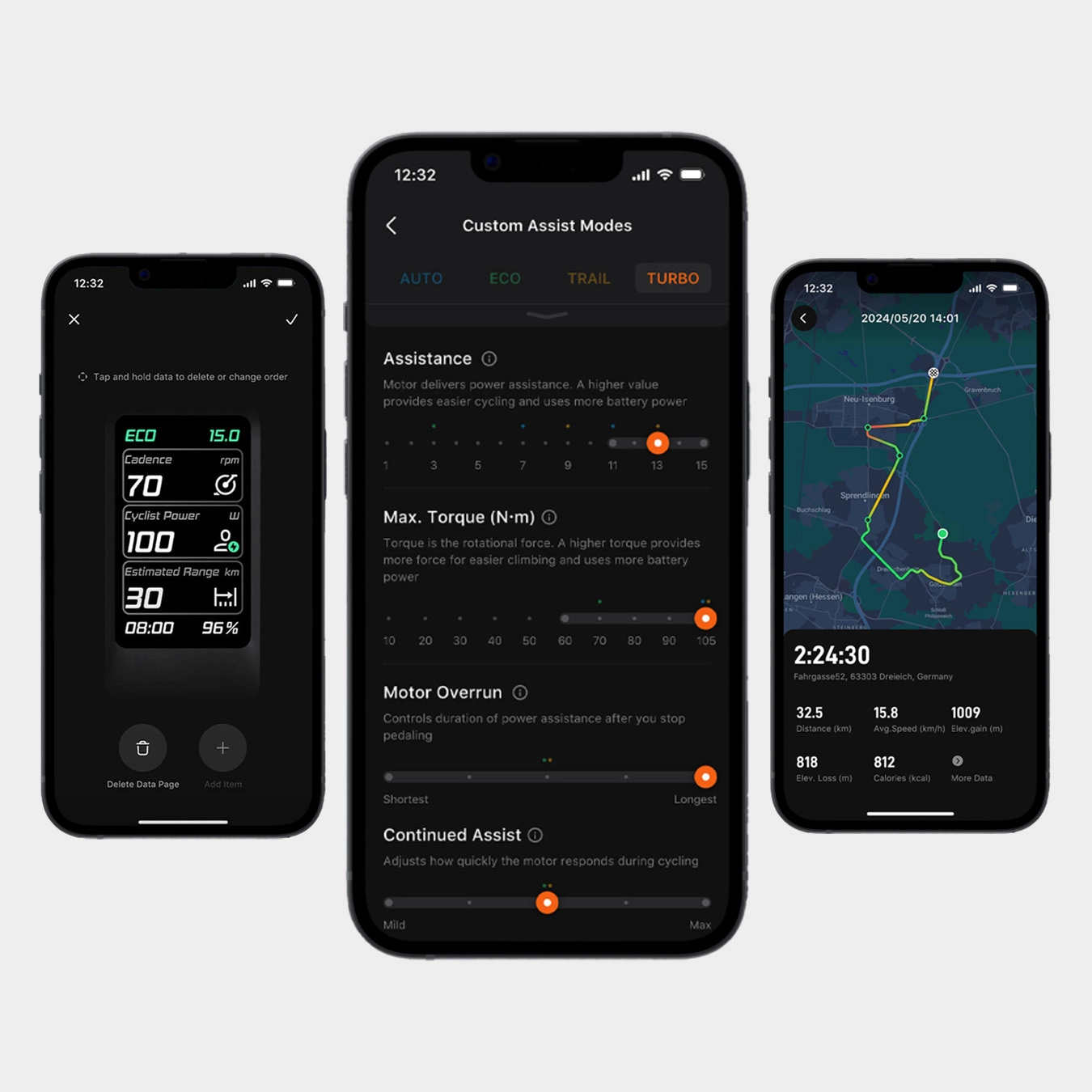

The Avinox App

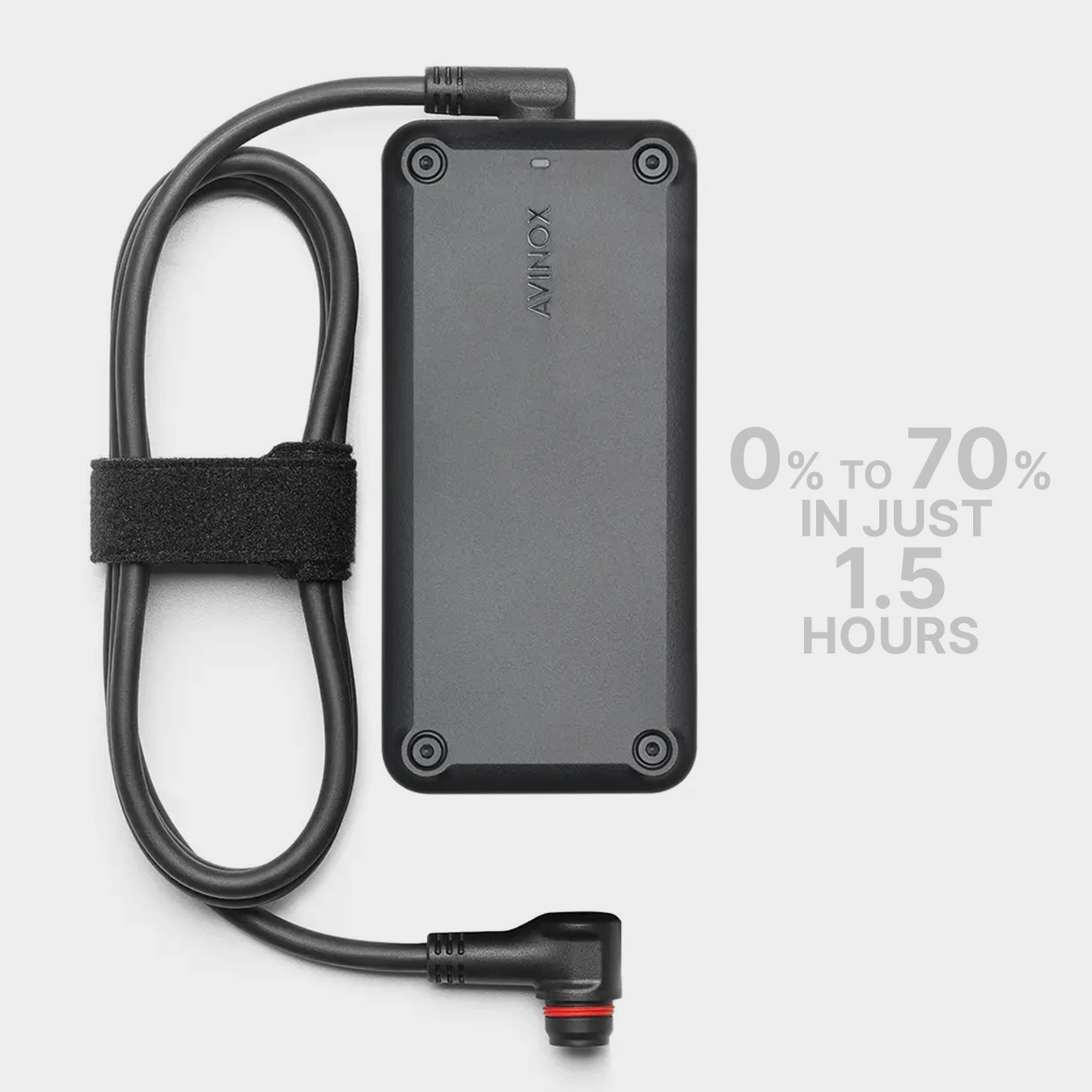

Fast-charging included

Deep System Integration

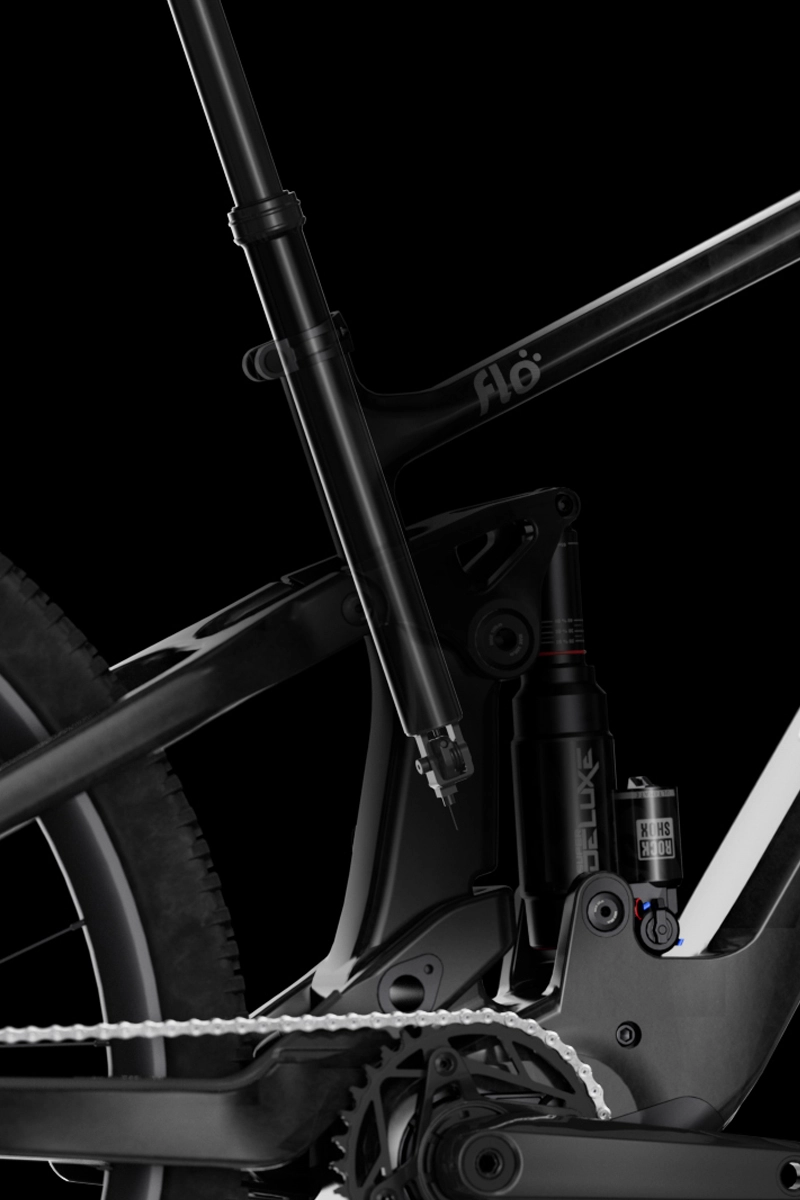

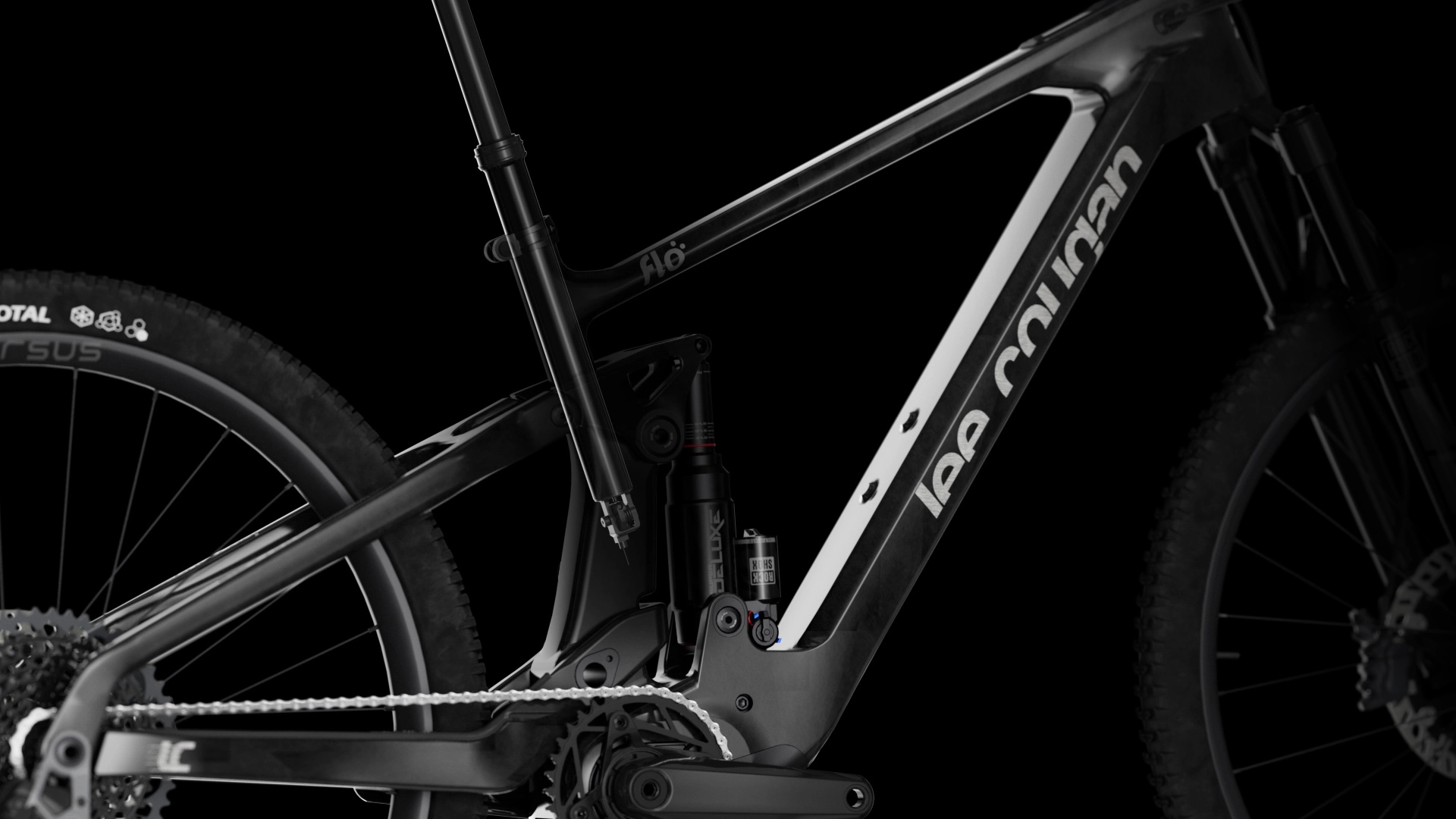

Deep Dropper Integration

Maximum clearance for every rider. Flo features deep seatpost insertion with 150mm of travel on size S and 170mm on M and L. Precise control, tailored to your frame.

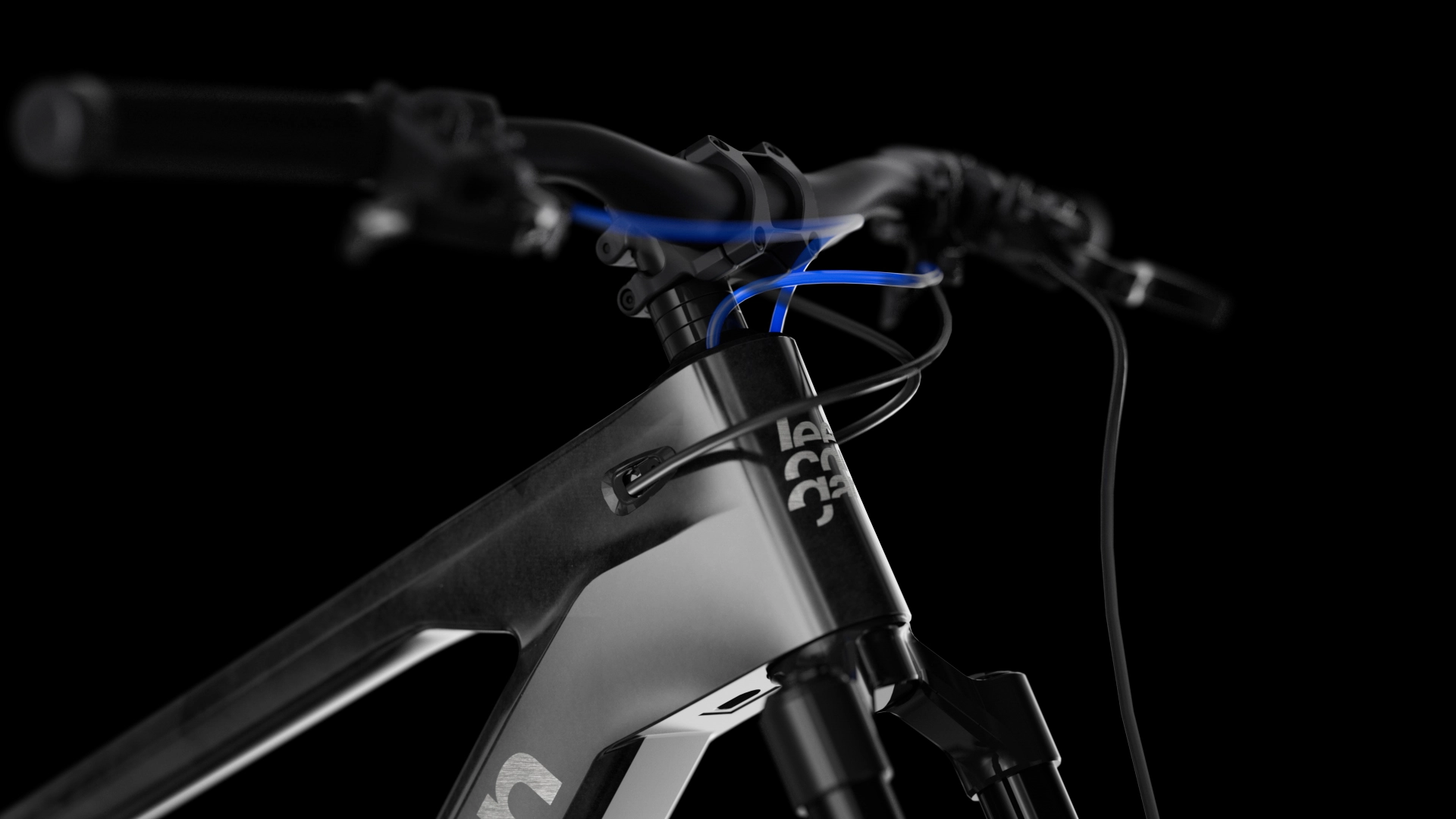

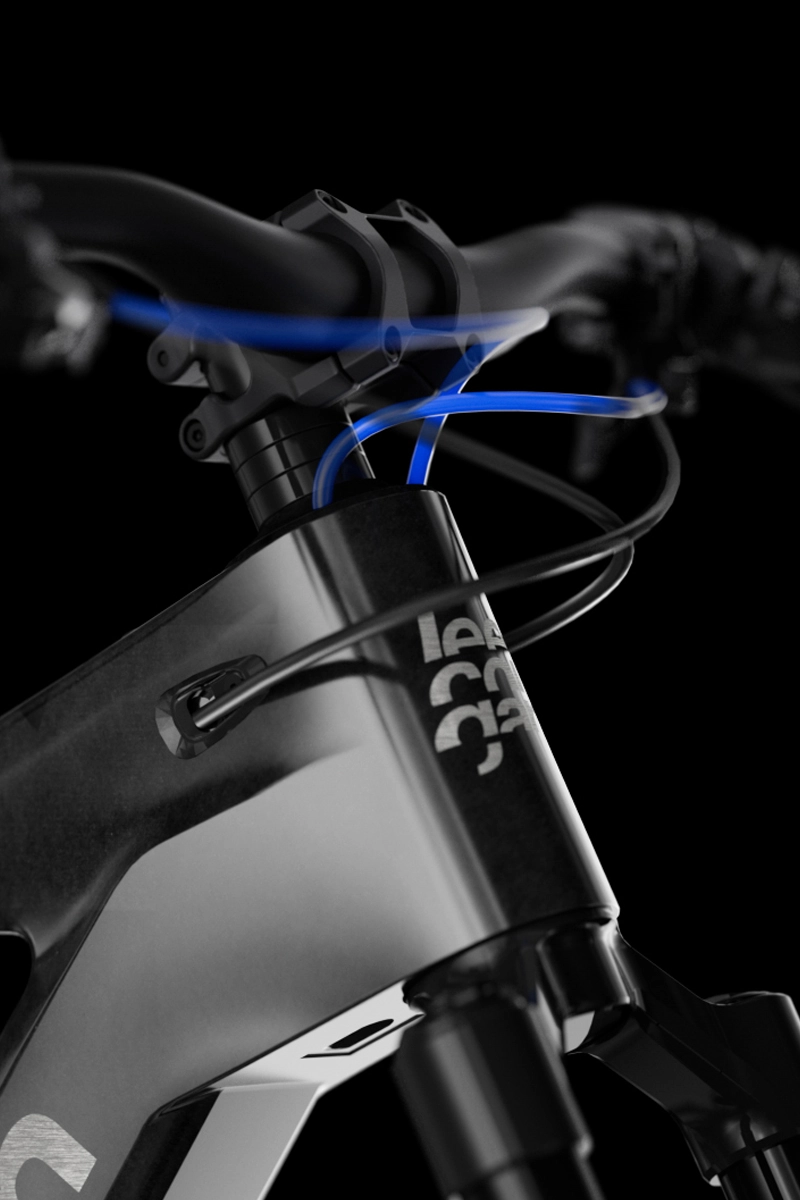

Custom Routing

Your bike, your preference. Route cables internally through the headset for a sleek profile, or externally for classic aesthetics and simplified maintenance.

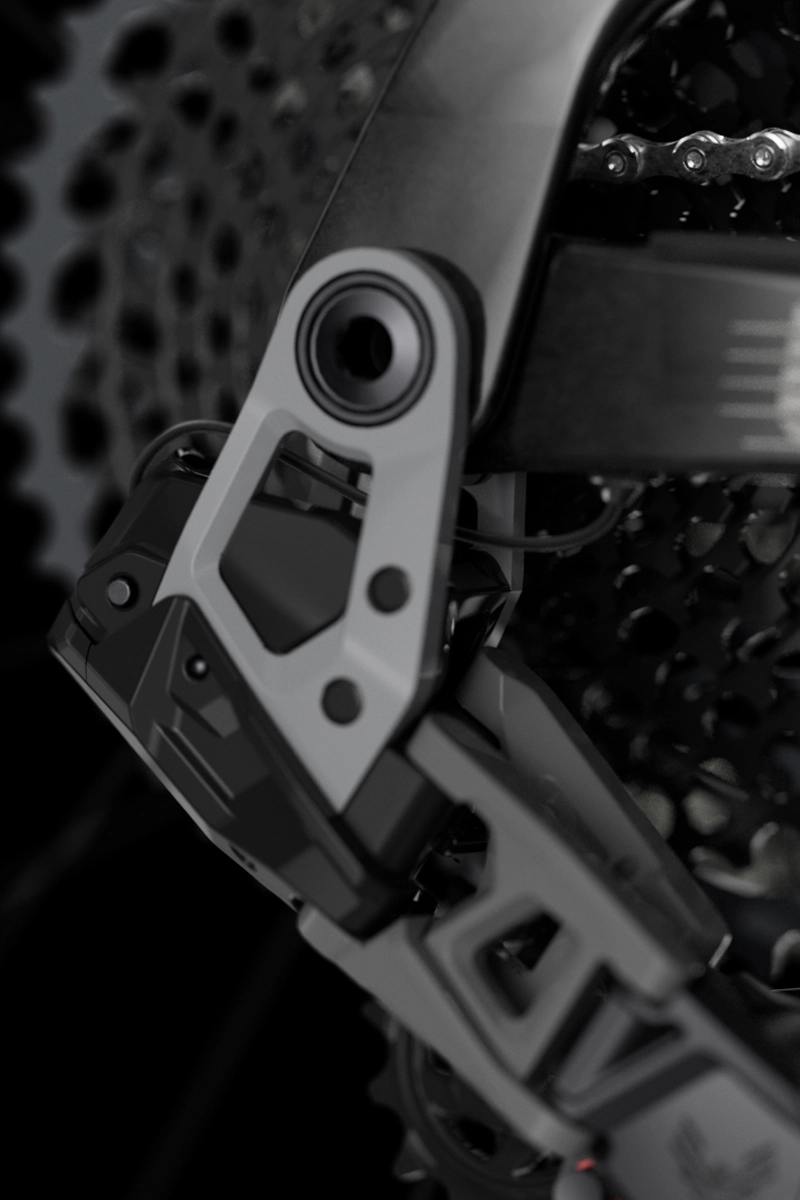

One Battery System

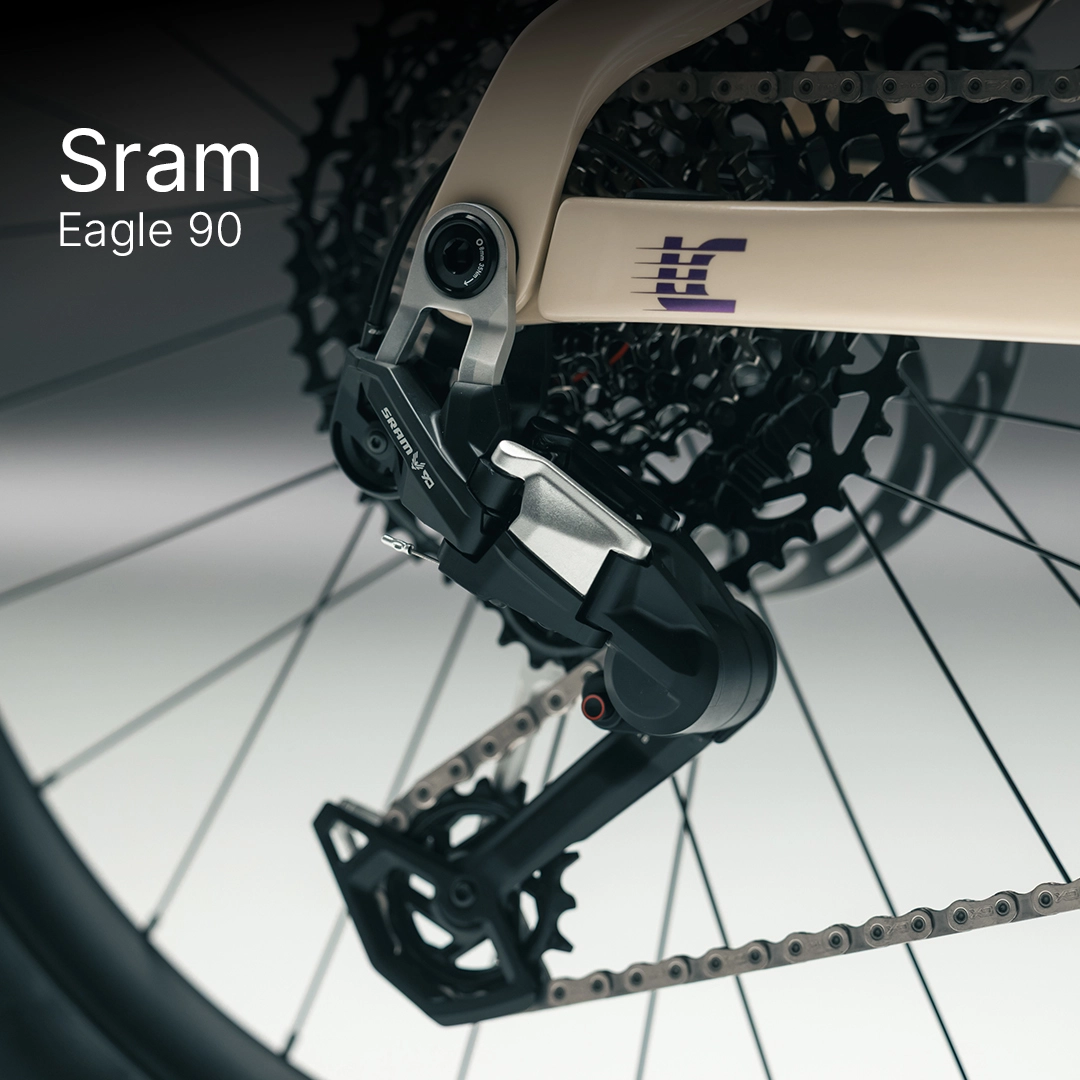

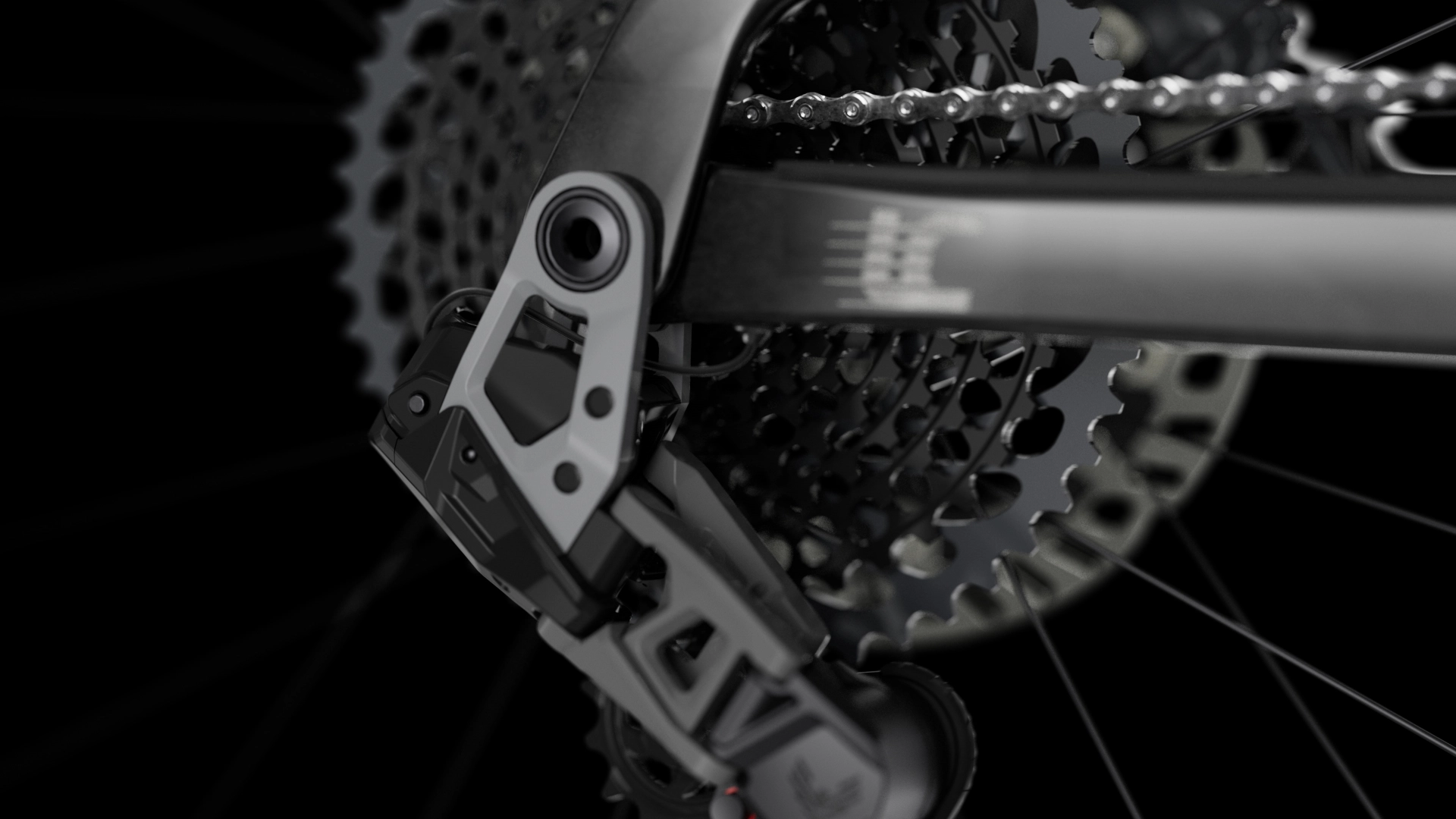

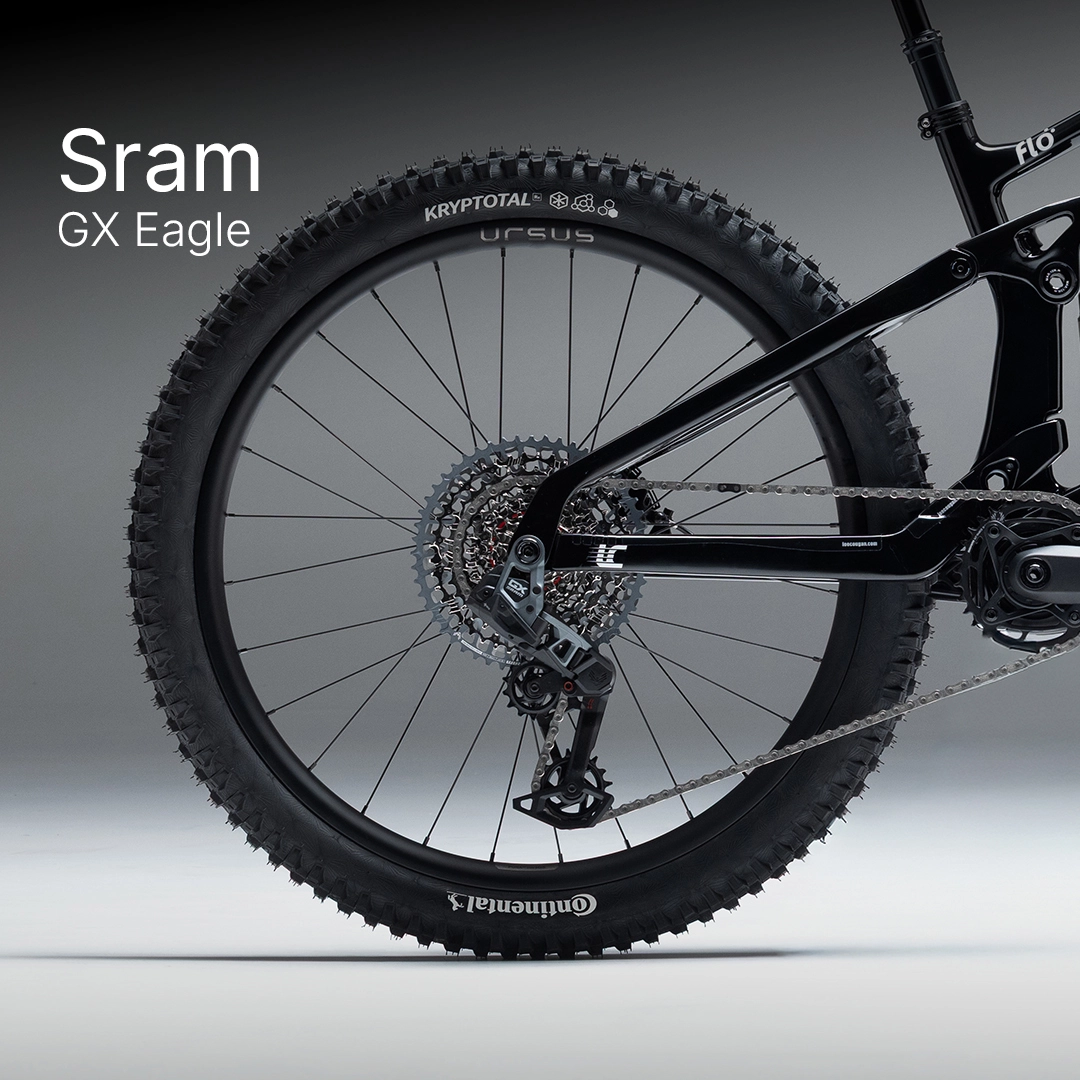

On the Carbon Pro, the SRAM AXS derailleur draws power directly from the main drive unit. One charge, one system, zero distractions before you hit the trail.

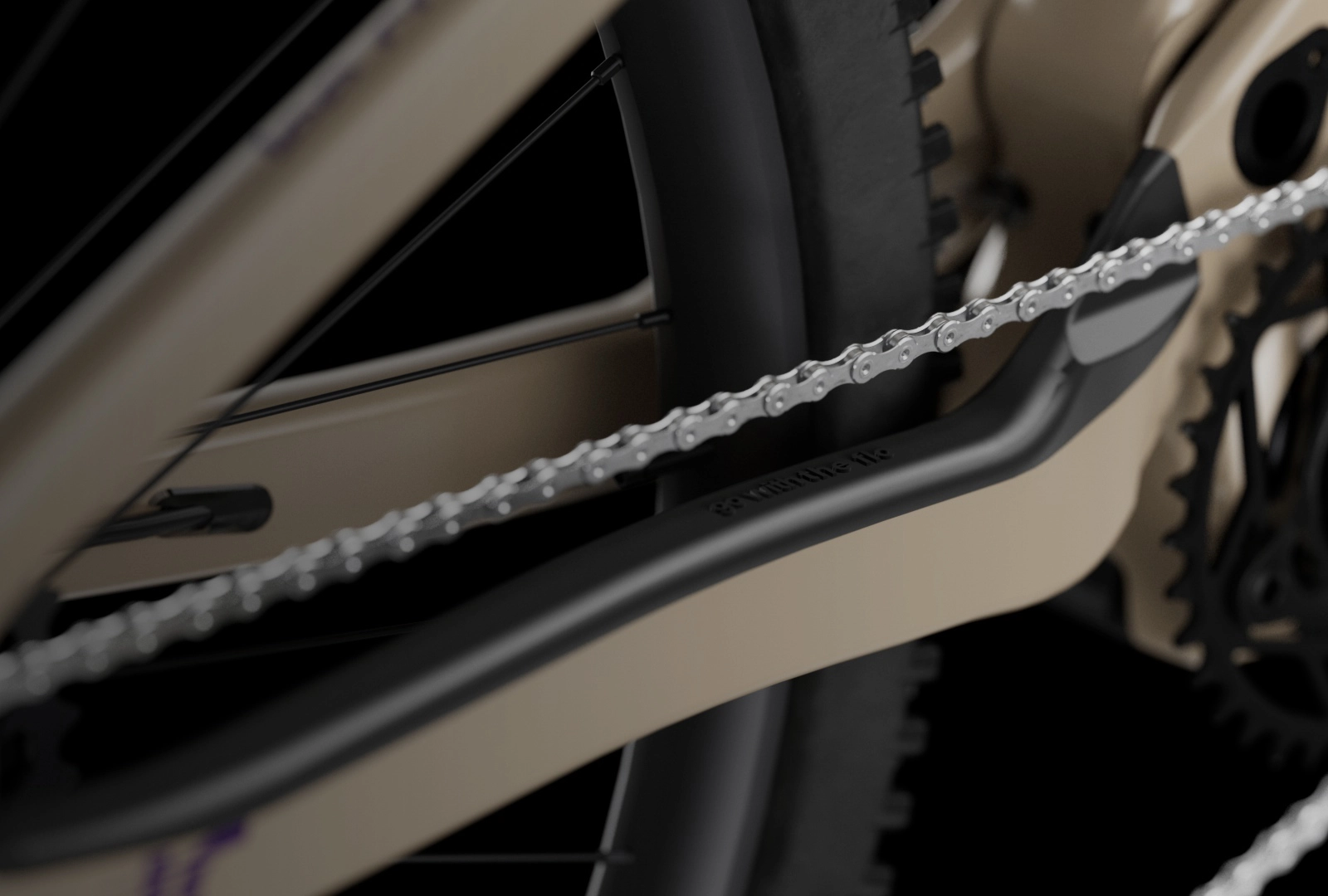

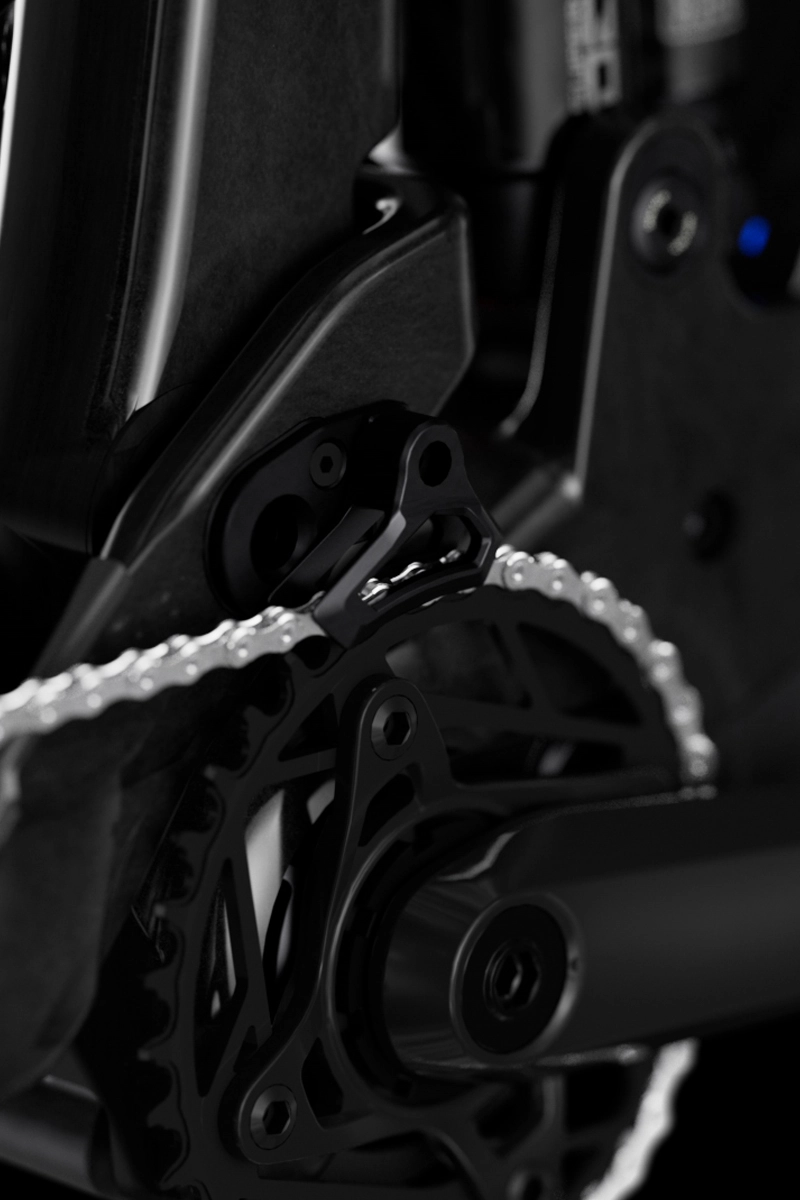

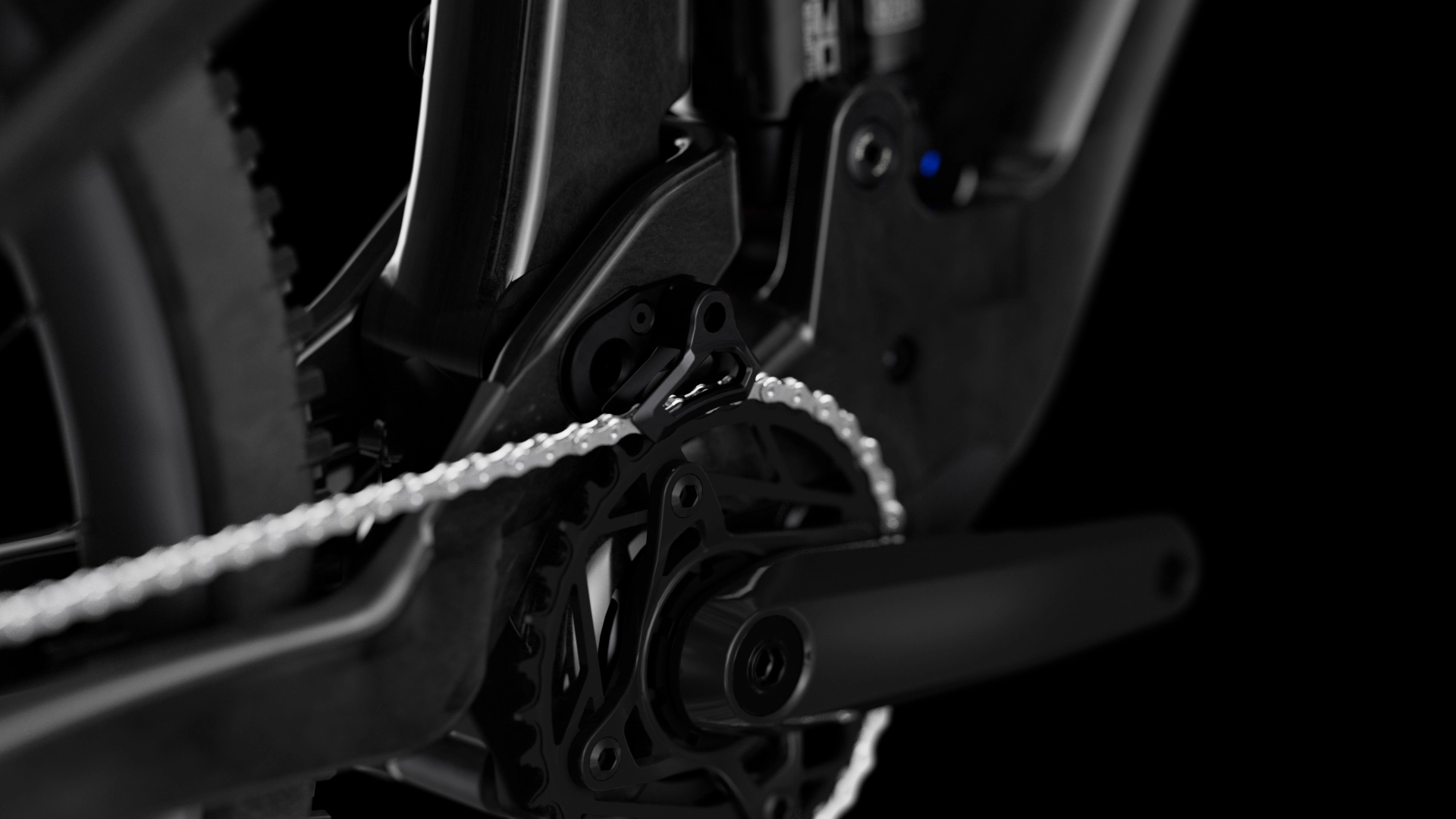

Integrated Chain Guide

Stay on track when you push the limit. Our dedicated chain guide keeps your drivetrain secure through the roughest technical sections. Confidence, built-in.

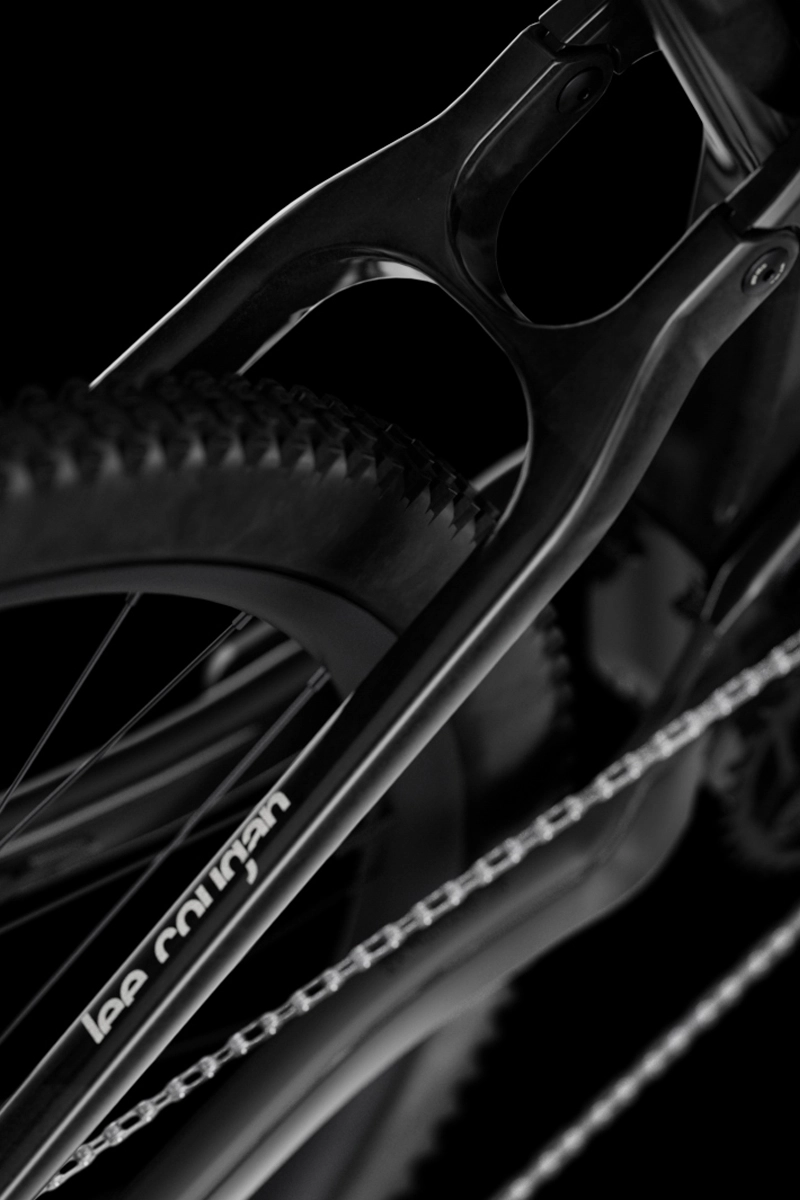

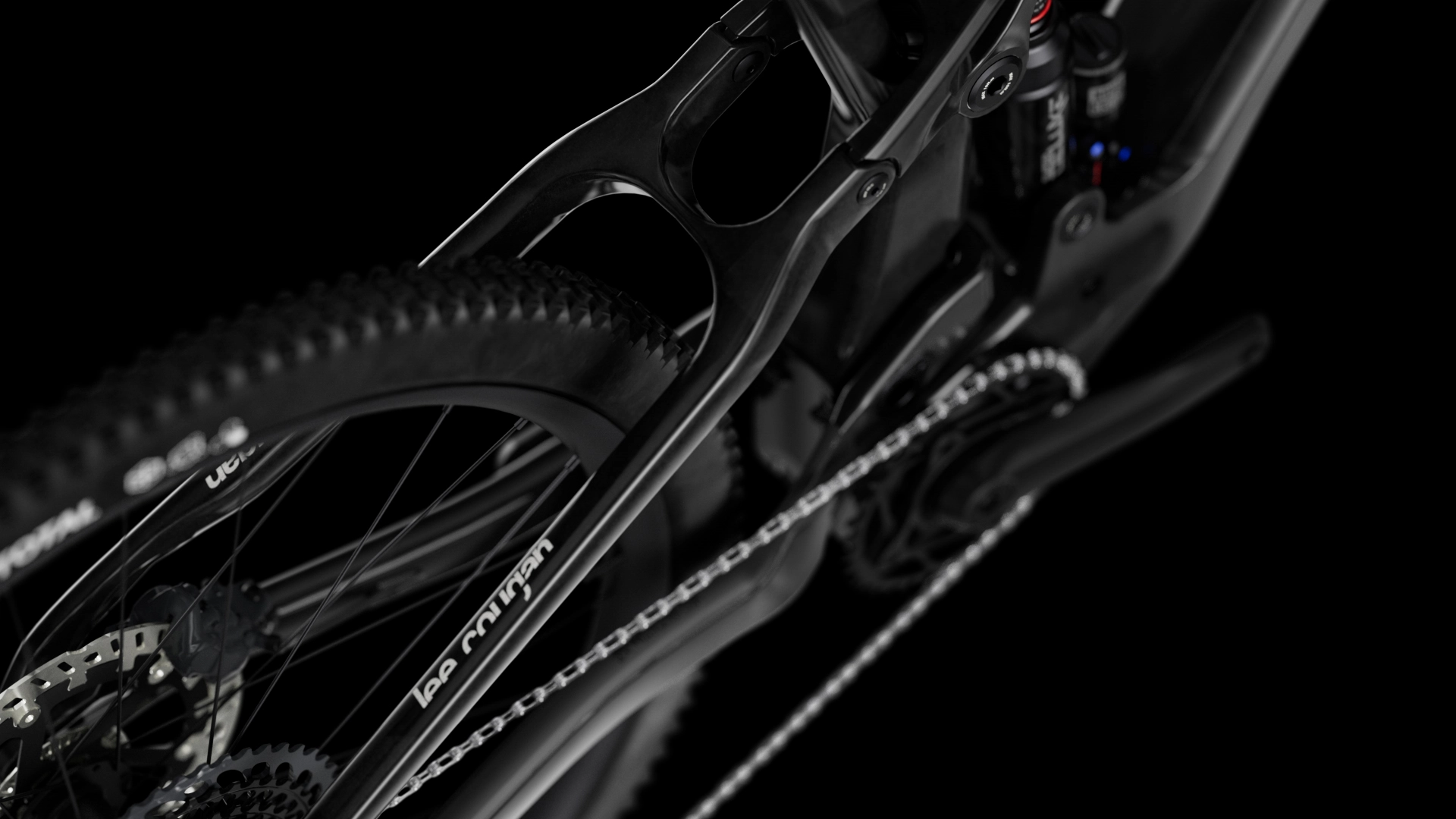

Tire Clearence

Whether you need extra volume for grip or mud-shedding capabilities, the Flö is engineered offers ample frame clearance for tires up to 2.6″ on a 29″ wheel,

Geometry

Precision-engineered for the modern rider: a slack 64° head angle for high-speed stability, a steep 77° seat tube angle for climbing efficiency, and a short seat tube for maximum clearance on technical terrain. Absolute control, uphill and down.

	S	M	L
Seat Tube (FS)	400 mm	420 mm	445 mm
Top Tube (TT)	563 mm	588 mm	620 mm
Head Tube (HT)	100 mm	115 mm	130 mm
Chain Stay (FS)	445 mm	445 mm	445 mm
Head Tube Angle (HA)	64°	64°	64°
Seat Tube Angle (SA)	77°	77°	77°
Wheel Base (WB)	1224 mm	1255 mm	1294 mm
Reach (R)	443 mm	467 mm	500 mm
Stack (S)	620 mm	634 mm	647 mm
BB Height	348 mm	348 mm	348 mm
Stand Over	763 mm	779 mm	800 mm
Seat Post Travel	150 mm	170 mm	170 mm
Max Seat Post Insert	225 mm	245 mm	270 mm
Crank Lenght	160 mm	160 mm	160 mm
Stem Lenght	35 mm	35 mm	35 mm
Handlebar Width	800 mm	800 mm	800 mm
Handlebar Rise	20 mm	20 mm	20 mm

.
